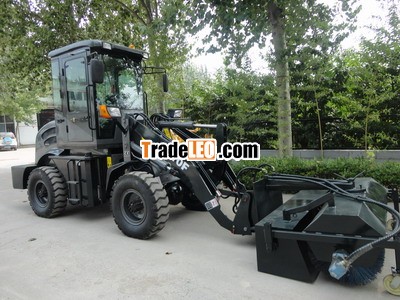

Model: ZL10F

Item

Parameters

Performance

1 .Rated Load

1000 kg

2. Total Weight

2730 kg

3. Rated Bucket Capacity

0.5 m3

4. Max. Tractive Force

30 KN

5. Max. Breakout Force

≥ 32 KN

6. Max. Gradeability

38°

7. Max. Dumping Height

2750 mm

8. Max. Dumping Reach

980 mm

9. Raising Time

≤ 4.5 s

10. Total Cycle Time

≤ 9.0 s

11. Overall Dimensions (L x W x H)

5000*1600*2680 mm

12. Min. Turning Radius

3000 mm

Engine

13. Model

CHANGCHAI ZN485Q / XINCHAI 490 / CHANGCHAI 4L50B

14. Type

Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine

15. Rated Power

26 kW / 29 kW / 36.4 Kw  （35HP/40HP/50HP）

16. Rated Speed

2200 rpm / 2400 rpm / 2400 rpm

17. Min. Fuel Consumption Ratio

≤ 244.8 g/kW·h / ≤ 228 g/kW·h

Transmission System

18. Transmission Mode

Mechanical Shift

19. Gear Shift

3 Forward, 1 Reverse

20. Max. Speed

25 km/h

Drive Axle

21. Model of Axle

50 Drive Axle

22. Wheel Tread

1350 mm

23. Wheel base

2070 mm

Drive

24. Mode

4-wheel Drive

Hydraulic System

25. System Working Pressure

16 Mpa

26. Fuel Tank Capacity

70 L

Brake System

27. Service Brake

Foot Pedal Drum Brake

28. Parking Brake

Hand Lever Flexible Shaft Controlled Disc Brake

Tyre

29. Type Specification

12.00-16-14PR

30. Front Tyre Pressure

0.40 Mpa

31. Rear Tyre Pressure

0.35 Mpa
