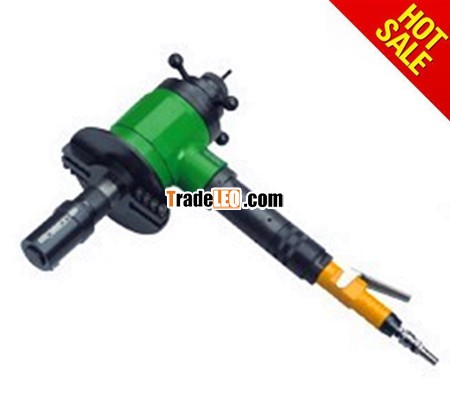

Pneumatic Pipe Beveling Machine (TCM80-350T)

Main characteristic:

This machine adopts "T" shape construction design,convenient operation,light weight,easy to carry,safe use.

Pneumatic Model: adopts penumatic motor to drive;air working pressure:0.6~1.5Mpa.

air cunsuming flux 650~1500L/min.It can be used for inflammable and dangerous operation places.

T-Pneumatic Pipe Beveling Machine adopts the pneumatical motor to drive, the awl gear transmission of arc tooth, the dangerous homework place of it is explosive to be suitable for, firing preventioning etc. Adjustable speed, simple and convenient to operate.

Tube bevelling machine is safe and reliable to use.

2.Pipe thickness: 1.5-15 mm

3.Standard Tools: 0 degree,30 degree,37 degree,15 degree.

If need to bevel other angels or alloy steel,cast steel,please declear before purchase.

Electric        Pneumatic        Working range (I.D.mm)         Wall thickness (mm)         Rotating

 ISY-28T        TCM-28T                       Φ16-28                                    ≤  15                            58

ISY-80T        TCM-80T                       Φ28-76                                    ≤  15                            55

SDC-120T  TCM-120T                      Φ38-90                                    ≤  15                            42

SDC-150T TCM-150T                       Φ65-159                                  ≤  20                            34

SDC-350T TCM-350T                       Φ150-330                                ≤  20                            16
