transmittance meter models: WTM-1000, WTM-1100

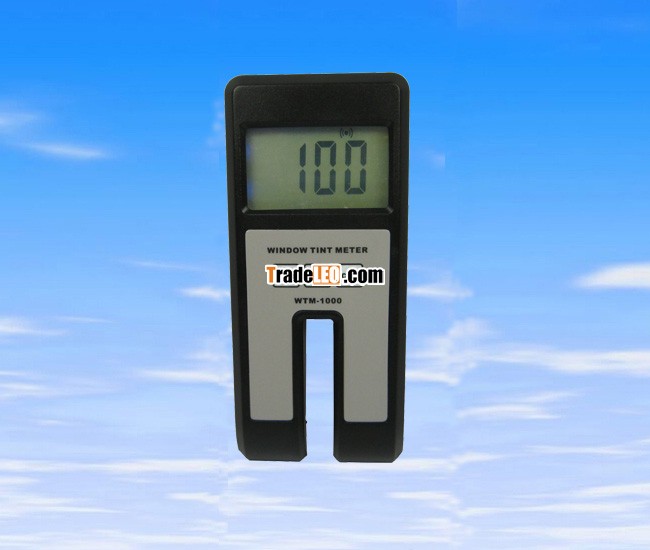

| Window Tint Meter |
| Model:WTM-1000 |
| Applications: |
| It measures the total amount of Visual Light Transmission (henceforth referred to as VLT) through a window and any coatings (tint film) on that window. |
| Specifications： |
| Disply: 10mm LCD |
| Accuracy: ±1％ |
| Resolution: 0.1 |
| Wavelength: 550 Nanometers |
| Measurement Range: 0 to 100% Light Transmission |
| Interface: RS232C |
| Sample Thickness: Less than 10 mm/0.4inch |
| Sample Size: 50 x 50 mm Minimum |
| Time of Testing: Maximum of 4 Seconds |
| Effects From Stray Light: Not Effected by Stray Light |
| Lamp Life: 10 Years |
| Operating conditions: 0-50℃,<90%RH |
| Power Source: 4 x 1.5v AAA Batteries |
| Weight: 100g (not including batteries) |
| Dimensions: 126 x 65 x 27 mm(5.0 x 2.6 x 1.1 inch) |
| Standard accessories included : |
| Carrying case 1 pc. |
| Operation manual 1 pc. |
| Optional accessory: Cable and software for RS232C |
