Model:EV-TS200

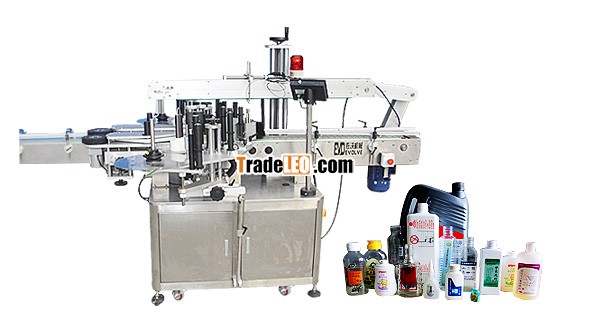

Automatic Bottle Label Pasting Machine
Feature:1. SUS#304 frame construction;2. Precision 5 phase stepper motor;3. National twin-axis PLC combined with human/machine interface;4. Labeling speed is automatically synchronized with conveyor speed to ensure high-quality labeling;5. It can be combined with production line;
| Name | Automatic Bottle Label Pasting Machine |
| Model | EV-TS200 |
| Lable hight | Max 130mm (adjustable) |
| lable roll size | Inner diameterφ76 mm ,Outer diameter Max φ350mm |
| Precision | ±1mm |
| Capacity | 0-90m/min (adjustable) |
| Objects | Objects with flat or slightly arched surface |
| Voltage | AC 110V or AC 220V or AC380V |
| Power | 1000W |
| G.W. | 450Kg. |
| Dimension | L2800 ×W1750 ×H1650 mm |
| Function | The labelling machine is made of stainless steel 304 and high-class aluminium ardal, the controling system adopts microcomputer with liquid crystal touch screen. This labelling machine can be installed on any product lines, and can change labelling methods according to the actual needs, and matches well to the components of the product line. This machine can stick lables on various olive, round or cylidrical objects, bottles, jars,etc. |
