Model:WNS-1
Overview

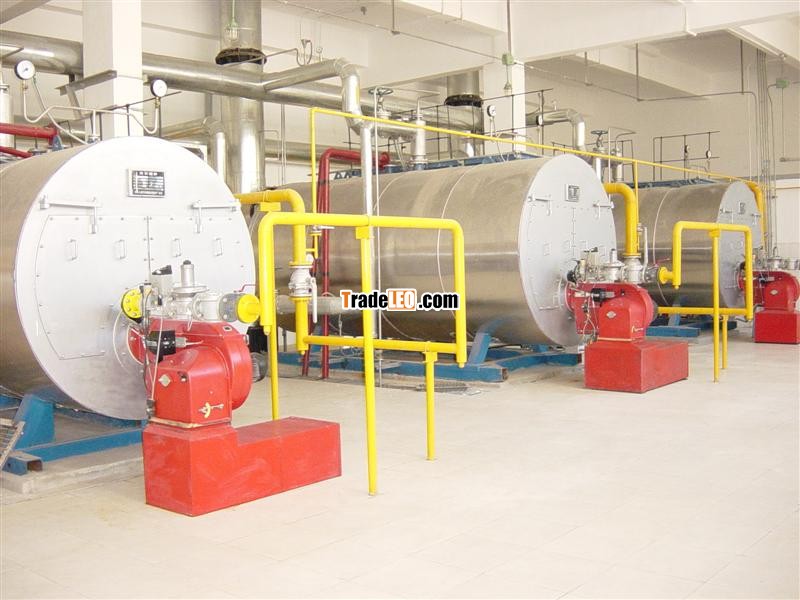

The ZG’s WNS series fuel and gas fired boilers provide innovative and efficient German technology with compact and space saving size.
By combining optimum components, a better solution is provided that meets your needs both today and in the future.
Benefits
a. Three-pass structure, big volume of the combustion chamber, burning fully
b. Corrugated furnace structure increases the heat transfer area ,and also satisfies the free expansion after the furnace is being heated.
c. Thread smoke tube enhances the heat transferred effect.
d. Wet back structure, whole plate boundary butt-jointed with seam.
e. Rear view device is easy to observe combustion status.
f. Multiple protective devices make the operation safe and reliable
g. Color pattern plate packaging, mirror finished stainless steel, or brushed stainless steel, elegant appearance
h. imported Combustor, Automatic operation.
i. High boiler thermal efficiency, stable output, strong load adaptability.
Construction
Data specifications
Fuel and gas fired Steam Boiler Specification sheet | ||||||||||
No. | Item name | Unit | Content | |||||||
1 | boiler model |
| WNS1-1.0-Y(Q) | WNS2-1.0-Y(Q) | WNS3-1.0-Y(Q) | WNS4-1.0-Y(Q) | WNS6-1.0-Y(Q) | WNS8-1.0-Y(Q) | WNS10-1.0-Y(Q) | |
2 | rated evaporation | t/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 | |
3 | rated steam pressure | Mpa | 1.0 | 1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | |
4 | rated steam temperature | ℃ | 184 | 184 | 184 | 194 | 194 | 194 | 194 | |
5 | feed water temperature | ℃ | 20 | 20 | 20 | 105 | 105 | 105 | 105 | |
6 | applied fuel | light oil, heavy oil, natural gas, city gas, gas, coke oven gas | ||||||||
7 | heating area | ㎡ | 29 | 55.7 | 78.84 | 98 | 141.7 | 189.7 | 248 | |
8 | water volume | m³ | 3.1 | 3.93 | 4.8 | 6.8 | 9 | 11.9 | 12.4 | |
9 | boiler weight | kg | 4300 | 5800 | 7085 | 9203 | 12675 | 24800 | 26751 | |
10 | shipping dimension(mm) | l*w*h | 3071*1790*2200 | 3750*1900*2150 | 4365*2102*2240 | 5550*2250*2296 | 5300*2380*2644 | 6450*3000*3820 | 7150*3000*3200 | |
