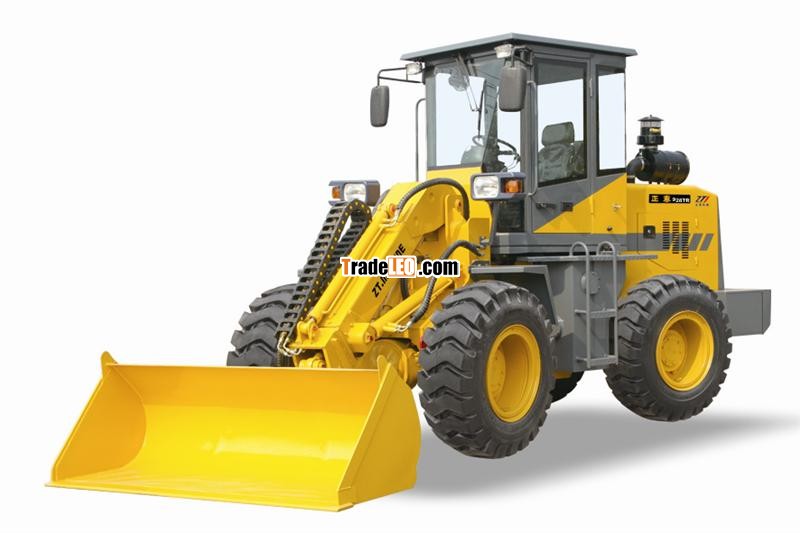

Model:ZT928RT
| Description | Specification |
| rated load(Tm) | 4 |
| operating weight（kg) | 6000 |
| Max.breakout force（kN） | 55 |
| Max.dump height（MM） | 4250 |
| Max.dump reach（MM） | 300 |
| Discharging Angle（°） | 45 |
| Max.grade ability | 30 |
| Automatic leveling ability | Yes |
| Lifting time（s) | ≤4.7 |
| Total cycle time(lifting, dumping, lowering)（s) | ≤10 |
| steering angle（°） | 35 |
| Min turning radius（MM） | 5885 |
| Wheel base(MM） | 2350 |
| Tread（MM） | 1500 |
| Min.ground clearance（MM） | 300 |
| Overall dimensions (l×w×h)mm | 5670×2060×2750 |
| travel speed（km/h） |
|
| Forward gear I | 0～6 |
| II | 0～24 |
| reverse gear I | 0～6 |
| II | 0～24 |
| Engine Model | Cummins 4BT3.9-C100 |
| Type | In line, water cooled, four stroke, dir.inject |
| Rated power（kW） | 60 |
| Rated speed（rpm） | 2400 |
| Maximum torque（N·m） | 305 |
| Hydraulic torque converter/transmission model | YJ280 /ZL15-I |
| Transmission gear | forward2reverse2 |
| Drive axle | 20F |
| Tire model | 16/70-20 |
| Steering model | BZZ5-320 |
| Multi-way diverter valve model | ZL20 |
| operating oil pump | CBG2063 |
| The system pressure（MPa） | 17 |
| The braking system | Gas-liquid caliper disc brake |
| The voltage(V) | 24 |
