Model:CPCD30

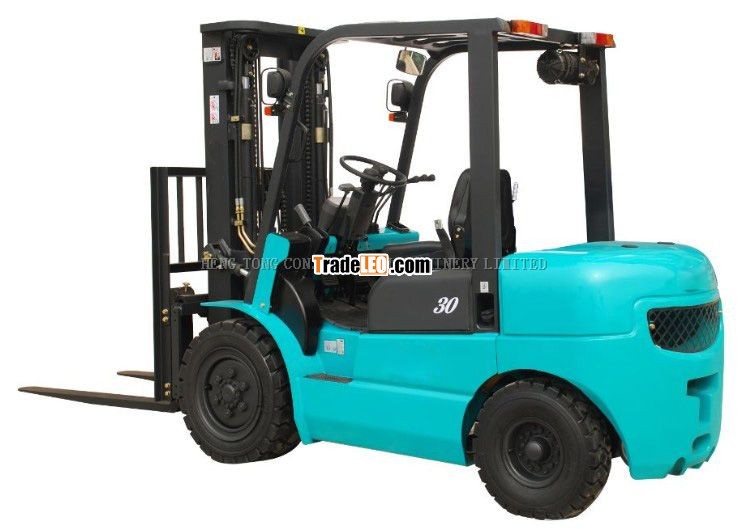

Diesel Forklift 3 Tons CPCD30
Description:
Features:
1)Integrated overhead guard and rain cover offering outstanding protection and visibility.
2)A wide range of Diesel, Gasoline and LPG engine options.
3)forklifts do comply with the latest safety, emission and noise standard e. G. CE, EU3
4)A hydraulic buffering system provides controlled and smooth lowering of loads and minimizes
the risk of damage.
Parameters:
| General | Model | CPC(D)30 | CPC(D)35 | ||
| CPQ(D)30 | CPQ(D)35 | ||||
| Power type | |||||
| Rated capacity | kg | 3000 | 3500 | ||
| Load center | mm | ||||
| Dimension | Lift height H | mm | |||
| Free lift height H4 | mm | 145 | |||
| Fork size L x W x T | mm | 1070x 125x 45 | 1070x 130x 45 | ||
| Mast tilt angle α/β | deg | ||||
| Front overhang X | mm | 494 | 500 | ||
| Overall dimension | Length to fork face L1 | mm | 2720 | 2775 | |
| Overall width B1 | mm | 1225 | |||
| Mast lowered height H1 | mm | 2080 | 2230 | ||
| Mast extended height H3 | mm | 4272 | |||
| Overhead guard height H2 | mm | 2090 | |||
| Turning radius R | mm | 2460 | 2540 | ||
| Performace | Travel speed | Hydraulic | km/h | 18/19 | |
| (full load/no load) | Mechanical | Shift I | 8.8/9 | ||
| Shift II | 18.5/20 | ||||
| Lift speed (full load/no load) | mm/sec | 430 | 400 | ||
| Max. grade ability | % | 15 | |||
| Service weight | kg | 4380 | 4750 | ||
| Chassis | Tyre | Front | 28 x 9-12-12PR | 28 x 9-15-14PR | |
| Rear | 6.50-10-10PR | ||||
| Thread | Front B2 | mm | 1000 | ||
| Rear B3 | mm | 970 | |||
| Wheelbase Y | mm | 1700 | |||
| Ground clearance | Mast M | mm | 110/135 | ||
| (full load/no load) | frame F | 135/140 | |||
| Engine | Type | Diesel engine | Gasoline engine | ||
| Model | 490BPG | 495BPG | Yanmar | Mitsubishi | |
| 4TNE92 | 4G64-31ZG | ||||
| Rated output (kw/rpm) | 37/2650 | 42/2650 | 32.8/2450 | 37/2500 | |
| Rated torque (N.m/rpm) | 148/1900 | 174/1800 | 149/1600 | 161/1600 | |
| No. of cylinder | 4 | 4 | 4 | 4 | |
| Bore x stroke (mm) | 90 x 100 | 95 x 105 | 92 x 100 | 86.5 x 100 | |
| Displacement (L) | 2.54 | 2.98 | 2.659 | 2.35 | |
| Truck model | CPC(D) | CPC(D) | CPC(D) | CPQD | |
| 20/25/30-X | 30/35-X | 20/25-Y | 20/25/30/35-M |
Pictures：
Delivery Term:
within 20 days after the receipt of the payment.
Packing Term:
One 20ft container can load 1 unit and one 40HC can load 3 units.
Warranty term:
Within 13 Months from B/L date, once any spare parts broken down during this period, the seller should send the broken down parts with free of charges.
