Detailed description：
I. Application: Extruded insulation of PVC, LDPE, XLPE, LSHF and so on.
II. Technical Parameters:
1 | Applicable conductor size | 60-120mm |
2 | Finished wire or cable size | 70-140mm |
3 | Extrusion capacity | Max 1200kg/h |
4 | Motor Power | 170 KW (Available of frequency inverter) |
5 | Heating power | 50 Kw (seven section heatings with air blowers.) |
6 | Center-height of the line | 1000mm |
7 | Pay-off | 3150mm |
8 | Take-up | 4200mm |
9 | Voltage | 380V/50Hz |
III. Composition of the line
1 | 3150mm pintle pay-off （motorized） | 1 Set |
2 | 2000Kg caterpillars. | 1 Set |

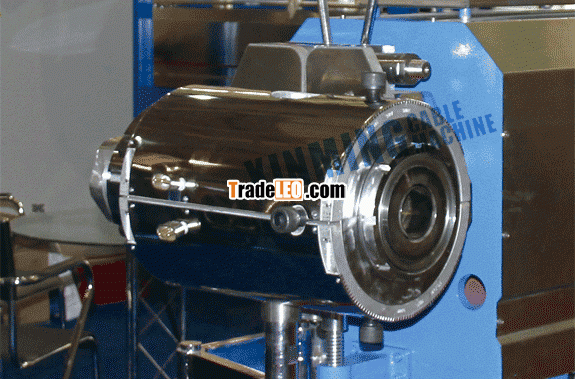

3 | 200/25 plastic extruder | 1 Set |
4 | water cooling trough | 1 Set |
5 | Blow-drying system | 1 Set |
6 | Meter counter. | 1 Set |
7 | 3200Kg caterpillars haul-off. | 1 Set |
8 | 4200mm pintle take-up | 1 Set |
9 | Electric control cabinet | 1 Set |
