XY travel range: 300x200mm

Z move range:250mm

XY resolution0.001mm

Lens magnify : 0.7~4.5X

Image magnify : 20X~266X

Object visual field: 10~1.6mm

Accuracy : (3+L/200)um

Lens: "NAVITAR" fromUSA

CCD: 410,000 pixel colorUSA"TEO" CCD

Measure software : VM 2.5D special video measuring software(auto-edge finder)

Machine base : high grade Granitic

Light source : profile light and surface light is 24 quadrant LED shadow-less lamp

Over size : 1300 x 1100 x2000 mm

weight :1000kg

computer(optional) :2.8GCPU17〞LCD1Gmemory160GHDDDVD-ROM

Optional part: 0.5X 2X  lens

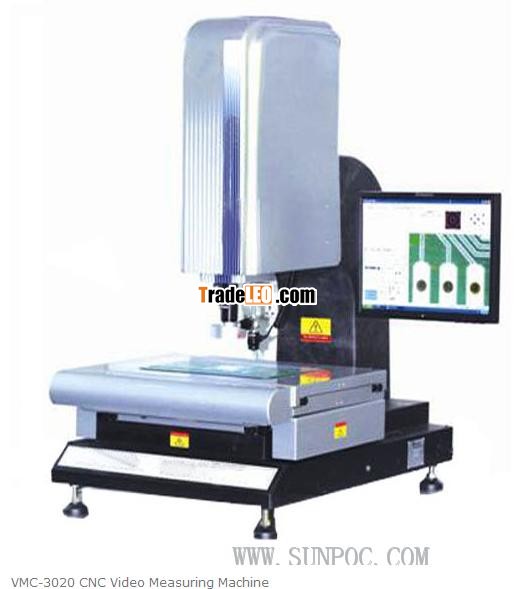

SP-VMC-3020

Model :SP-VMC-3020

Measuring Range (X/Y/Z:mm): 300*200*200

Dimension(mm) :800*500*1650 980

Operation Mode: Automatic

CCD: 430,000 pixel color CCD

Lens: American NAVITAR Motor Zoom lens

Magnification: Optical magnification: 0.7X-4.5X;

Image magnification: 28X-180X

Software :OVM Pro 2.0

Optical Ruler Resolution :1μm

Repeatability: 2μm

Precision (X/Y): (3+L/200)μm

Load Capacity:30kg

Applicable Environment Power:110V~220V±10% 50/60HZ

Temperature: 20±5 oC  Humidity: 45%-75%

Free Maintain Time :One year
