Model:NRFC
Specifications:
water produce line
1)All Kinds Noncarbonated Drinks
2)2000-30000BPH
3)Easy Operation And Mantainance
water produce line

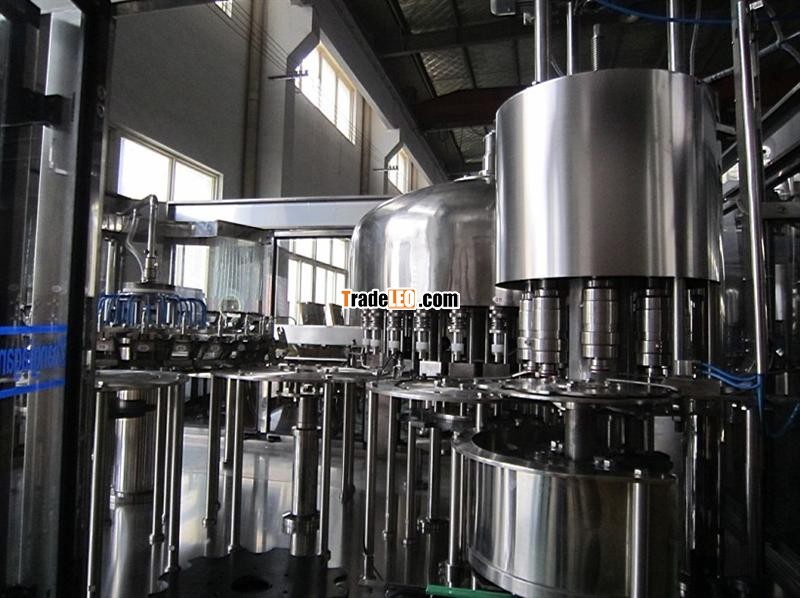

---Product Images
1.Washing part
2.Filling
3.Capping parts
---Product Main Technical Data
Model | CGF14124 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF505012 | CGF606015 | CGF808020 |
Number of washing, filling and capping heads | 14-12-4 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-20 |
Production capacity(600ml) (B/H) | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | 35000-40000 |
suitable bottle specification(mm) | φ=50-110=170 330-2250ml | |||||||
Washing pressure(kg/cm 2 ) | 2-3 | |||||||
Motor power(kw) | Main motor 2.2kw | Main motor 2.2kw | Main motor 3kw | Main motor 5.5kw | Main motor 7.5kw | Main motor 11kw | Main motor 15kw | Main motor 19kw |
Overall dimensions (mm) | 2400×1650 ×2500 | 2600×1920 ×2550 | 3100×2300 ×2800 | 3800×2800 ×2900 | 4600×2800 ×2900 | 5450×3300 ×2900 | 6500×4500 ×2900 | 76800×66400 ×2850 |
Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | 15000 |
