Model:FD25/FD30/FD50/FD100
Send Inquiry

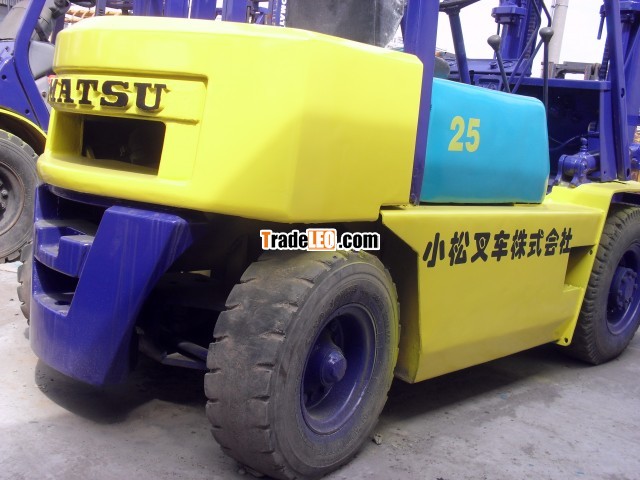

Used KOMATSU FD25 FORKLIFT
1.Condition:used
2.Brand:KOMATSU
3.Model:FD25
4.Year:2006
5.very good condition
6.low working time
7.no oil leak
8.low price for sale
Specification| Engine | ||
| Make | Kubota | |
| Model | V3300 | |
| Power | 66.1 hp | 49.3 kw |
| Torque | 167 lb ft | 226.4 Nm |
| Power Measured @ | 2500 rpm | |
| Displacement | 202.5 cu in | 3.3 L |
| Torque Measured @ | 1800 rpm | |
| Number of Cylinders | 4 | |
| Fuel Type | diesel | |
| Operational | ||
| Operating Weight | 8223.2 lb | 3730 kg |
| Tire Type | Front 7.00-12-12PR Rear 6.00-9-10PR | |
| Number of Front Wheels | 2 | |
| Number of Rear Wheels | 2 | |
| Max Speed | 11.5 mph | 18.5 km/h |
| MAST | ||
| Load Capacity | 5511.6 lb | 2500 kg |
| Load Center | 19.7 in | 500 mm |
| Mast Tip Forward | 6 degrees | |
| Mast Tip Rear | 12 degrees | |
| Max Fork Spread | 4.8 in | 122 mm |
| Lift Speed | 128 ft/min | 39 m/min |
| Lower Speed | 108.3 ft/min | 33 m/min |
| Dimensions | ||
| Length to Fork Face | 8.3 ft in | 2530 mm |
| Overall Width | 3.8 ft in | 1150 mm |
| Overall Height - mast lowered | 6.5 ft in | 1995 mm |
| Max Fork Height | 9.8 ft in | 3000 mm |
| Wheelbase | 5.2 ft in | 1600 mm |
| Turning Radius | 7.3 ft in | 2240 mm |
| Height to Top of Overhead Guard | 6.8 ft in | 2070 mm |
| Ground Clearance | 4.3 in | 110 mm |
| Right Angle Stack | 8.8 ft in | 2690 mm |
