TYPE | S65
| S150
| S260
| SM405
| |
Roller Diameter (mm) | 65 | 150 | 260 | 405 | |
Roll Length (mm) | 125 | 300 | 695 | 810 | |
Roller speed ratio (Slow,Medium,Fast) | ≈1:3:9 | ≈1:2.4:4.98 | ≈1:2.5:6.25 | ≈1:2.87:8.1 | |
Roller Speed | Slow rollr/min | 32 | 25.3 | 19.1 | 12.2 |
Medium rollr/min | 89 | 63.25 | 54.5 | 40 | |
Fast roll r/min | 250 | 152 | 155.3 | 116 | |
Roller speed ratio(before,middle,after) | 7.8:2.8:1 | 6:2.5:1 | 8.13:2.85:1 | 9:3:1 | |
Motor | Model | YL8024 | Y100-4 | Y160L-6 | Y180L-6 |
Power kw | 0.75 | 2.2 | 7.5 | 15 | |
Speed r.p.m | 1400 | 1420 | 970 | 970 | |
Capacity (Reference)(kg/h) | 1 | 8 | 18 | 38 | |
Total Weight (kg) | 80 | 600 | 2300 | 5218 | |
Overall dimension (L × W × H) mm | 440×420×400 | 820×800×920 | 1645×1350×1100 | 1980×1848×1300 | |

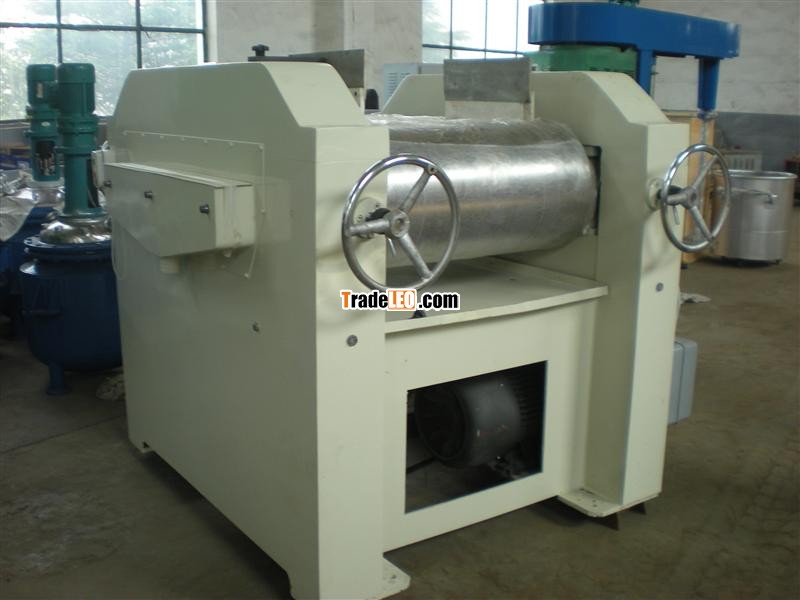

It is the ideal wet grinding machine for high viscosity materials such as paint,printing ink, dyestuff, plastic ect. The three grinding rollers are squeezing by each other and with diffrent speeds. It can grind materials fully and get best grinding fineness.
