Model:JW-QTY3-13

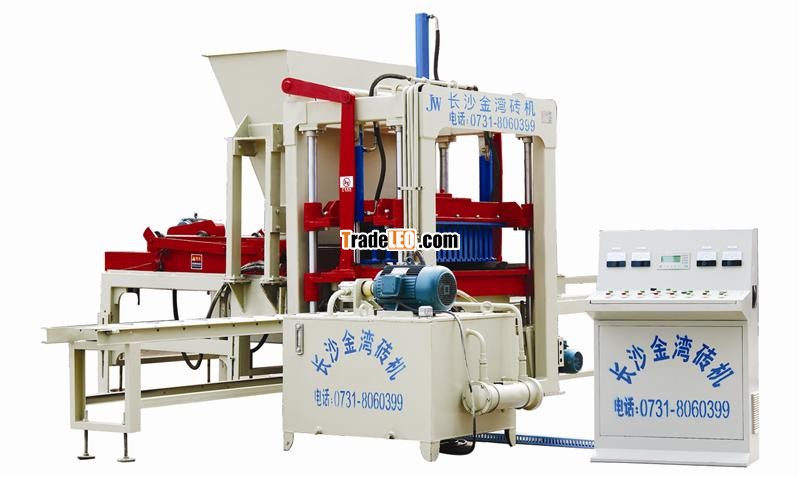

Model No. QTY3-13Automatic Concrete Hollow Brick Machine
The concrete machinery QTY3-13 is a small fully automatic hydraulic brick
makingmachine,it can produce various type of block by replacing molds, the capacity can be
30000 pcs per day. It is suitable for people who are looking for fully automatic machine with
less investment.
Main Technical Parameters of Cement Brick Making Machine
Item | QTY3-13 |
Rated pressure | 16 Mpa |
Main vibration form | Strong pressure vibration |
Vibration frequency | 3,500~4,300 timespermin |
Pallet size | 690×550×20 mm |
Molding cycle | 12~18 Secpertime |
Gross power | 17.6 KW |
Gross weight of main machine | 5.7 T |
Productivity
Block Type | Dimensions(mm) | PiecesperHour | PiecesperDay | Year Output |
Hollow blocks | 390×190×190 | 720 pcs | 5,700 pcs | 1,710,000 pcs |
Perforated blocks | 240×115×90 | 2,400 pcs | 19,200 pcs | 5,760,000 pcs |
Solid blocks | 240×115×53 | 3,750 pcs | 30,000 pcs | 9,000,000 pcs |
Our Guarantee of Automatic Hydrualic Fly Ash Brick Making Mahince QTY3-13
1.Lifetime warranty free of charge;
2.Free spare parts;
3.Professional training to your workers;
4.High efficiency brick production line;
5.Priority to become our agent in your city,we offer you our factory prices;
6.High profits from your bricks and blocks business;
7 High quality with lower price in the market.
The Advantage of Our Machine
Brick Samples
Our General Size For Your Reference( Send us your block size, wewill design as your request)
Curb Brick
Multi-Hole Brick
Hollow Brick
Raw Material
Superiority of the machine
1Multi-function : It can produce hollow blocks, standardorsolid blocks and otherconcrete
productsindifferent specifications by replacing moulds;
2Intelligent of operationThis machine uses the specific design of application software of
LCD display of PLC man-machine interface, remote control, and automatic fault diagnosis,
making it moreintelligent in operation.
3High efficiency and simple operationThe main machine frameof the fly ash block making
machineis manufactured of gantry frame structure and super-strength steel.
4Working Principle:The fly ash block making machine is mainly by hydraulic vibration, and
secondarily mechanical vibration. The compressive strength of products produced comes up to
10 Mpa, the density is high; it is good at frost resistance, sound insulation and heat insulation.
