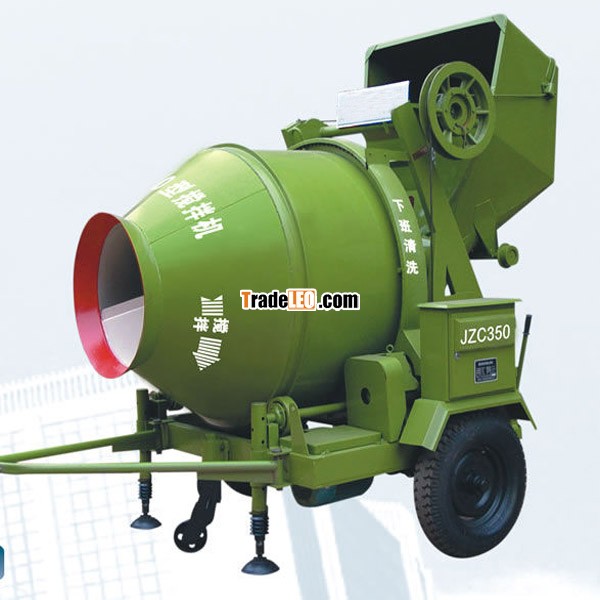

Model:JZC350
Product introduction of concrete mixer supplier
Concrete mixer supplier is a gravity type of reverse turning discharge mixers with double cone, the mixing
tube is driving by ring gear, during its operation, it will turn upright while mixing and turn reverse while
discharging. It can mix concrete and semi-hard concrete quickly, and is applicable to normal construction
site, road, bridge works and various types of concrete members factories.
Advantages of concrete mixer supplier
The concrete mixer supplier is designed and made by our company with advantages of reliable mixing
performance, high productivity,low energy consumption, low noise, handsome appearance, portable and
movable, light weight.
Main technical parameters of concrete mixer supplier
MODEL | JZC350 | JZC400 | JZC450 | JZC500 |
Discharging Capacity (L) | 350L | 400L | 450L | 500L |
Charging Capacity (L) | 560L | 640L | 720L | 800L |
Production Capacity(m3/h) | 10-14 m³/h | 12-16 m³/h | 14-18 m³/h | 18-20 m³/h |
Drum rotating speed （r/min） | 15.5 r/min | 14 r/min | 14 r/min | 13 r/min |
Max aggregate size(mm) | 60mm | 40-60mm | 40-60mm | 60-80mm |
Water feeding precision | ≤2% | ≤2% | ≤2% | ≤2% |
Mixing Power (kw) | 5.5 kw | 7.5 kw | 7.5 kw | 7.5 kw |
Hoisting motor(kw) | 4.5 kw | 4.5 kw | 4.5 kw | 5.5 kw |
Water pump motor(kw) | 0.55kw | 0.55kw | 0.55kw | 1.1kw |
Max. dragging speed (km/h) | 20 km/h | 20 km/h | 20 km/h | 20 km/h |
Dimension(L x W x H mm) | 2766x2140x3000mm | 2940x2240x2880mm | 2940x2240x2880mm | 5226x2200x5460mm |
Total weight (kg) | 1950kg | 2200kg | 2200kg | 3100kg |
