Model:JS500-2000
JS serial concrete mixer with CE is a new concrete mixing machinery with multi functions and can be applied to mix stiff consistency, plastic and light aggregate concrete and all kinds of mortar.
the concrete mixer has such characteristics as simple structure, high mixing quality, high efficiency, low energy consumption, low noise and simple operation.
| Model | JS500 | JS750 | JS1000 | JS1500 |
| Delivery Capacity | 500L | 750L | 1000L | 1500L |
| Trough-put Capacity | 800L | 1200L | 1600L | 2400L |
| Productivity | ≥25 m3/h | ≥35 m3/h | ≥50 m3/h | ≥75 m3/h |
| Mixing motor power | 18.5kw | 30kw | 37kw | 45kw |
| Lifting motor power | 5.5kw | 7.5kw | 11kw | 18.5kw |
| Water pump power | 0.75kw | 1.1kw | 1.1kw | 1.1kw |
| Mixing blade (rotate speed) | 35.5r/min | 30r/min | 25r/min | 20r/min |
| Mixing blade (QTY) | 2*7 | 2*7 | 2*7 | 2*6 |
| Maximum aggregate size | 60/80mm | 60/80mm | 60/80mm | 60/80mm |
| Lifting speed of the hopper | 18m/min | 26m/min | 19m/min | 19m/min |
| Overall dimensional(L*W*H) | transport status:3050*2100*2680mm | transport status:3650*2200*2560mm | transport status:4640*2250*2750mm | transport status:5058*2250*2440mm |
| work status:4640*3030*5780mm | work status:4600*4500*5800mm | work status:9580*3600*7500mm | work status:9645*3436*9700mm | |
| Overall weight | 4160KG | 7600KG | 8360KG | 1200KG |
| Package detail | 1set/20'GP | 1set/20'GP | 1set/20'GP | 1set/20'GP |
| Ex-work price/set | $4,880 | $9,225 | $15,744 | $22,764 |

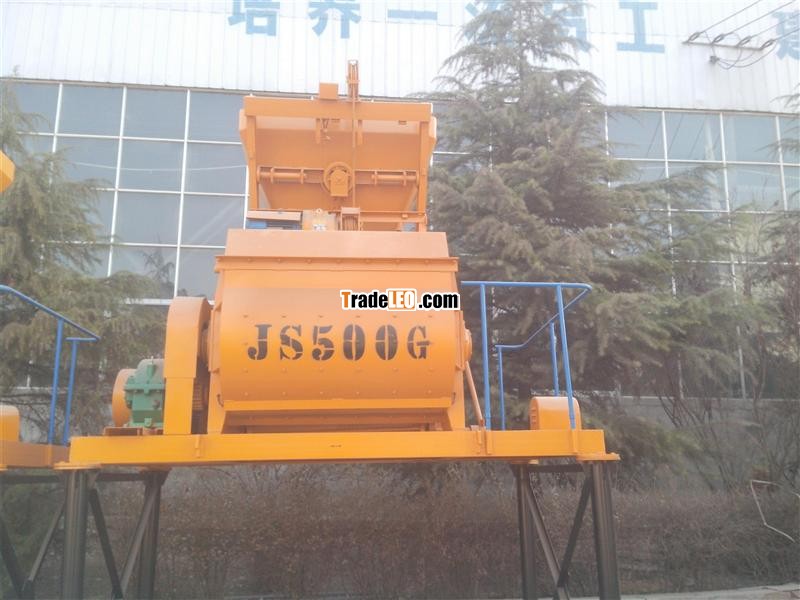

| Picture |
|
|
|
|
