Model:JH-A500T
JH-A500T Polyurethane Spray&Injection foam Machine
MultifunctionalApplication:
Mainly for construction injection,construction spraying,buffer packaging. Polystyrene Coating,insulatedlintels,automotive industry,composit doors,hot water cylinders,modular buildingmanufacture,pipe insulation,structural insulated panels.
For spraying:Buildingexterior and interior wall spraying,cold storage spraying, cabinetinsulation and noiseproofing of car&bus,roof insulation and waterproof,refrigeratedtrucks and industrial anticorrative spraying.

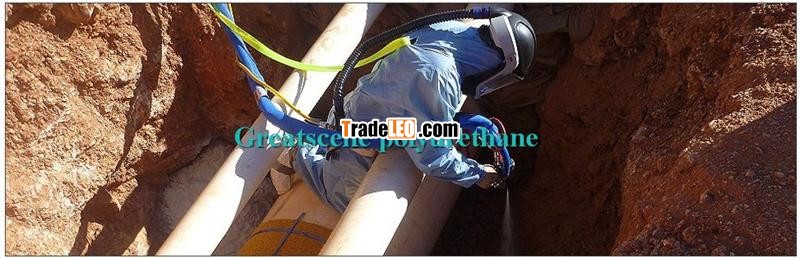

For injection:solarwater heater,refrigerator,freezer,pipe joints,door-crackpadding,products padding&packaging,roller shutter door,security door,roadconstruction,wall noiseproofing,moulding,landscapemodeling etc.
Standard configuration:
Main engine:1 unit
Spray gun:1 piece
Feeding pump:2 pieces
Heating hose:15m/set(49.2 feet/set ,can be up to 90metersequal to 295 feet)
Short tube connect with gun:1.5m(4 feet)
1 set of accompanied accessories
Briefintroduction:
Polyurethane foaming material has many advantages such asindulation,heat proofing,noise proofing and anticorrative etc.Widely used inmany areas.Environmental friendly and energy-saving.The insulation andheatproofing function are better than any other materials.
Workingprinciple:
The function of this machine is to extract black and white material.Makethem pressurized.So both materials combined by high pressure in the gun headand then spray out.
Technical specifications:
Heating power 9kw
| Max working pressure | 20Mpa | Driving mode | Fully pneumatic |
| Max output flow | 9kg/min (19.8 lb/min) | Voltage requirements | 2-ph 220V 50Hz/3-ph 380V 50Hz |
| Polyol and isocyanate mixing ratio | 1：1 | Pneumatic source | 0.7-0.9Mpa 1cubic meter per min/10BAR |
| Heating mode | A,B,C heats independently | Machine size | 800*700*1200mm |
| Heating temperature range | 0-80Celsius | Net weight | 170KG |
| Gun Cleaning mode | air purge cleaning | Max extended heating hose length | 90m(295 feet) |
Guarantee maintenance&Training
1.One year free guarantee not includingconsumables like O-rings
After one year,maintenance ischarged.
2.English user manual operationguide.
online technical service is alsoprovided by email,calling,video talk
3.Technical person can be sent toyour country.This is paid.
Buyer can come to factory to betrained.It will take 3-4 days to finish.
