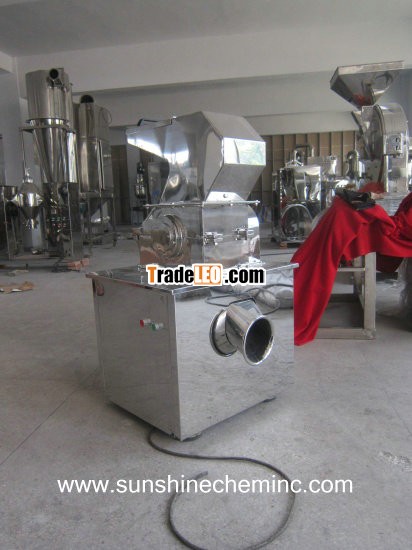

Coarse Crusher is widely used for coarse crushing various kinds of materials for food, pharmaceutical, chemical and other industries.
Features
1. Horizontal crushing structure
2. Made of stainless steel
3.Compact structure, low noise and easy washing
Specification
| Model | Model 80 | Model120 | Model 200 |
| Capacity (kg/hr) | 10~200 | 100~500 | 150~800 |
| Feed Pellet Size (mm) | ≤50 | ≤100 | ≤100 |
| Exit Pellet Size (mm) | 0.5-20 | 0.5-20 | 0.5-20 |
| Main Shaft rotational speed(r/min) | 400 | 400 | 400 |
| Power (kw) | 1.5 | 3 | 5.5 |
| Weight (kg) | 120 | 250 | 500 |
| Measurement (LxWxH) (mm) | 600x500x950 | 700x800x1100 | 880x900x1250 |
