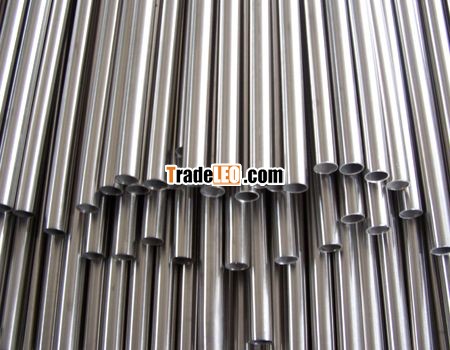

Titanium tubes
2016-11-03 19:31 Views:280
Price:Negotiable
Model:STM001
Send Inquiry
Titanium Tubing/Pipe
| Types | Dimension(mm) | Condition | Specifications | Picture | Seamless
Tubes | Normal size:
OD.(8-120) x Th.(0.5-10) x Length <6000mm | | Extruding and
Rolling | ASTMB338,B337,B861
Grade 1,2,5& 9 | | | Welding
Tube | Normal size:
OD.(6-30)xTh.(0.5-2.0)x
Length<4000mm | | Rolling | ASTM B338,B337,B861
Grade 1,2,5& 9 | | | |
| Specific dimension for cold-rilled tubes & pipes: |
| OD(mm) | 8.0-10.0 | 10.0-15.0 | 15.0-20.0 | 20.0-25.0 | 25.0-30.0 | 30.0-35.0 |
| WT(mm) | 0.15-2.0 | 0.2-2.0 | 0.4-2.7 | 0.45-3.2 | 0.45-3.3 | 0.45-3.4 |
| OD(mm) | 35.0-40.0 | 41.0-45.0 | 46.0-50.0 | 51.0-55.0 | 56.0-60.0 | 61.0-65.0 |
| WT(mm) | 0.5-3.5 | 0.6-3.8 | 0.6-3.8 | 0.6-4.4 | 0.8-4.6 | 0.9-4.7 |
| OD(mm) | 66.0-70.0> | 71.0-75.0> | 76.0-95.0 | 96.0-114.0
| | |
| WT(mm) | 1.0-4.9 | 1.2-6.0> | 1.2-7.1 | 1.3-7.5 | | |
| OD(mm) | 0.32"-0.39" | 0.39"-0.59" | 0.59"-0.79" | 0.79"-0.98" | 0.98"-1.18" | 1.18"-1.38" |
| WT(mm) | 0.006"-0.079" | 0.079"-0.79" | 0.016"-0.11" | 0.018"-0.126" | 0.018"-0.13" | 0.018"-0.134" |
| OD(mm) | 1.38"-1.57" | 1.61"-1.77" | 1.81"-1.97" | 2.00"-2.17" | 2.20"-2.36" | 2.40"-2.56" |
| WT(mm) | 0.02"-0.138" | 0.024"-0.15" | 0.024"-0.15" | 0.024"-0.17" | 0.031"-0.18" | 0.035"-0.19" |
| OD(mm) | 2.60"-2.76" | 2.80"-2.95" | 2.99"-3.74" | 3.78"-4.49" | | |
| WT(mm) | 0.04"-0.19" | 0.047"-0.24" | 0.047"-0.28" | 0.051"-0.30" | | |
