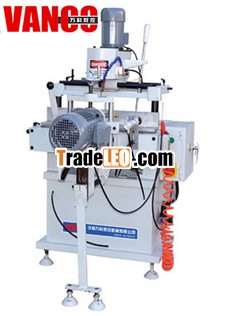

Automatic Lock Hole Milling Machine for PVC Window and DoorLZ3F-300*100

Function:

Milling all kindsof lock holes.

Features:

1. Formed by three-hole drilling part(horizontal) and copy milling part (vertical).

2. Special machining PVC milling cutter,which possess good quality and high durability.

TechnicalParameter:

Power supply:380V/50Hz

Power: 2.1Kw

Air pressure:0.5MPa~0.8MPa

Air consumption:30L/min

Milling cutterdiameter: φ5mmx60mm; φ8mmx80mm

Milling cutterrevolving speed: 12000r/min

Driller diameter: φ12mm

Driller revolvingspeed: 900r/min

Hole space: 21.5mm

Milling range:370mm*125mm*12mm (L*W*Deep)

Cross section:230mm*210mm (max) (W*H)

Dimension:1000mm*1130mm*1500mm (L*W*H)

Weight: 260Kg
