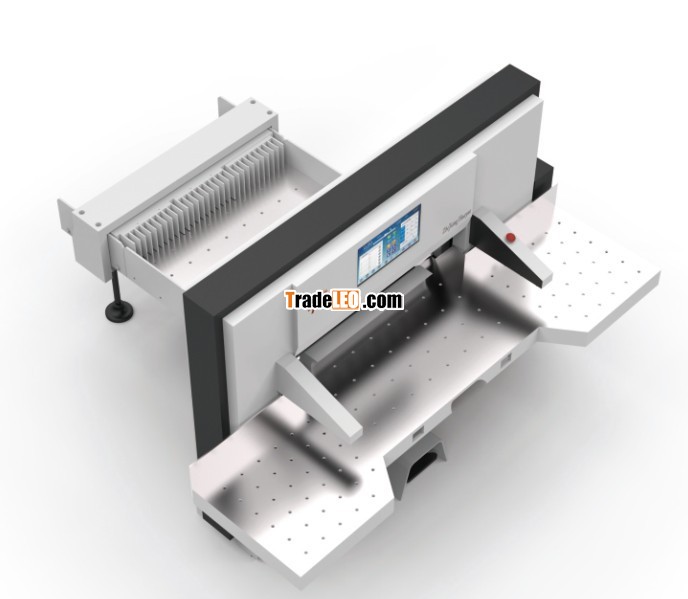

Model:HPM168M15
Send Inquiry
- Computer system:
- 1.Up-to-date 15.6" widescreen LCD, full touch screen, Siemens PLC control
- 2.Eight languages to choose
- 3.Metric system and British system two units, shows size front of knife and back of knife
- 4.Stepless speed adjustment function with latest technology, to make cutting 5.speed from 30 to 48 times within 1 minute, no need to change knife angle for different cutting material
- 6.Position resolution of back gauge is 0.01mm, closed-loop control, locating error is less 0.01mm, no need to adjust locating error, maximum back gauge speed is 18m/minute
- 7.Program storage capacity is 300 programs, every program can store 299 items cutting sizes, storage memory has a maximum of 40 years
- 8.With USB, transmit data, to convenient operator make programming and arrangement via PC
- 9.Equipped with fault diagnostics and non-repeat safety guards, can detect all position switch state and dynamic prompt switch failure, make machine more convenient maintenance
- 10.Back gauge is driven by Panasonic servo-motor with four speed levels
- 11.Uses Italy oil pump and hydraulic system
- 12.With automatic pushing paper function, distance can be adjusted
- 13.Adjustable time delay for knife activation, accurate and convenient
- 14.Uses icons to show operational functions, which are simple and user-friendly
- 15.With full automatic cutting function, back gauge and knife movements can be monitored on screen
-
-
- Machine performance:
- 1.Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism
- 2.Clamp press paper stack through hydraulic system, spring re-position
- 3.Worm gear drive mechanism, hydraulic clutch, mechanical brake
- 4.WESSEL hydraulic system from Germany (optional), Italy oil pump
- 5.Switzerland ABB main motor (optional)
- 6.One-piece, slotless and chrome-plated cast iron work table is sturdy and easy to maintain
- 7.import ball screw with double linear guides to drive back gauge
- 8.Whole sealing safety guard for rear work table (optional)
- 9.Germany LEUZE infrared protection device (optional)
- 10.Main electronic units are from French TE and Japanese Ormon famous international brands
