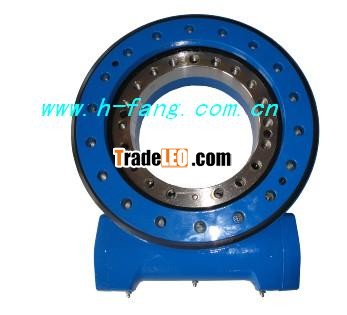

Model:SE14-85-R slewing drive
Wenli@h-fang.com.cn
Gear Ratio:85:1
Output torque:8kNm
Tilting moment Torque:67.8Nm
Holding torque:48kNm
Static Axial Rating:555KN
Static Radial Rating:222kN
Dynamic Axial Rating :133KN
Dynamic Radial Rating:177kN
Weight:54Kgs
1.Huafang slewing drive are widely used in the solar tracking systems, special construction vehicles, port machinery and small wind turbines
2.Huafang is fully equipment with all advanced machines for manufacturing, assembly, inspection, test processes and automatic cleaning and painting and power coating lines.
| Model | Output Torque | TilTing Moment Torque | Static Axial Rating | Static Radial Rating | Gear Ratio | Tracking Precision |
| SE3C | 0.4 kN.m | 1.1 kN.m | 30 kN | 16.6 kN | 62:1 | <=0.2° |
| SE5A | 0.6 kN.m | 3 kN.m | 45 kN | 22 kN | 62:1 | <=0.2° |
| SE7 | 1.5 kN.m | 13.5 kN.m | 133 kN | 53 kN | 73:1 | <=0.2° |
| SE9A | 6.5 kN.m | 33.9 kN.m | 338 kN | 135 kN | 61:1 | <=0.17° |
| SE12A | 7.5 kN.m | 54.3 kN.m | 475 kN | 190 kN | 78:1 | <=0.17° |
| SE14A | 8 kN.m | 67.8 kN.m | 555 kN | 222 kN | 85:1 | <=0.17° |
| SE14-2 | 12KN.M | 67.8 kN.m | 555 kN | 222 kN | 85:1 | <=0.17° |
| SE17A | 10 kN.m | 135.6 kN.m | 970 kN | 390 kN | 102:1 | <=0.15° |
| SE17-2 | 16.8KN.M | 135.6 kN.m | 970 kN | 390 kN | 102:1 | <=0.15° |
| SE21 | 15 kN.m | 203 kN.m | 1598 kN | 640 kN | 125:1 | <=0.15° |
| SE21-2 | 20.6KN.M | 203 kN.m | 1598 kN | 640 kN | 125:1 | <=0.15° |
| SE25 | 18 kN.m | 271 kN.m | 2360 kN | 945 kN | 150:1 | <=0.15° |
| SE25-2 | 28KN.M | 271KN.M | 2360 kN | 945 kN | 150:1 | <=0.15° |
