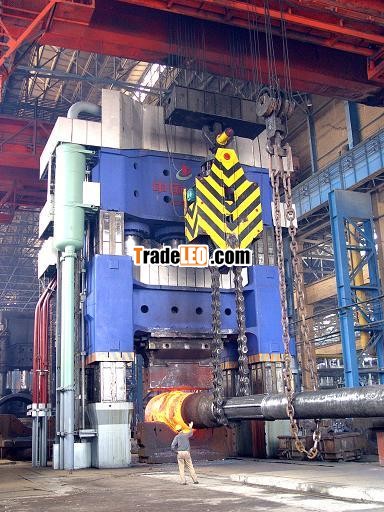

5,000TON HEAVY 4-COLUMN PUSH-DOWN HYDRAULIC OPEN DIE FORGING PRESS WITH 80 TonFORGING MANIPULATOR

PRESSSPECIFICATIONS

PRESSFORCE: 400.0 BAR (4,700 TONS)

UPSETFORCE: 425.0 BAR (5,000 TONS)

MAXIMUMPRESS STROKE: 2,500.00 MM

MAINCYLINDER DIAMETER: 710.0 MM

NO. OFCYLINDERS: 3 SET

PRESSDAYLIGHT: 5,000.0 MM

PRESSFORCE STAGE @ 425 BAR

1STSTAGE (ONE-CENTRAL CYLINDER): 16.7 MN

2NDSTAGE (TWO-SIDE CYLINDER): 33.4 MN

3RDSTAGE (THREE-ALL CYLINDER): 50.0 MN

DISTANCEBETWEEN COLUMNS CLEAR WIDTH: 4,000MM X 1,800MM

TABLESHIFTING DEVICE STROKE (LEFT X RIGHT): 3,000MM X 3,000MM

DIEMAGAZINE: 4-DIE MAGAZINE

NUMBEROF PRESS STROKE

FORCESTAGE        PENETRATION         RETURN STROKE     STROKE/MINUTE

3-CYLINDERS        150MM              300MM             10/12

3-CYLINDERS        100MM              200MM             15/17

2-CYLINDERS        50MM               100MM             25/30

1-CYLINDERS        5MM                20MM              80/85

WEIGHTOF PRESS (DIE MAGAZINE/DIE SHIFT): APPROX. 900 TONS (1,984,140 LBS)

OVERALLDIMENSION OF PRESS

TOTALDIMENSION OF PRESS: 14,370 MM

PRESSHEIGHT ABOVE FLOOR LEVEL: 10,870 MM

DEPTH:3,500 MM

QUANTITYOF PUMPS: 8

PRESSUREOF EACH PUMP

1) RX360 (2): 400 BAR, MAX 500 BAR

 2) RF 1000 (6): 400 BAR, MAX 450 BAR

HYDRAULICSYSTEM: HYDRAULIC
