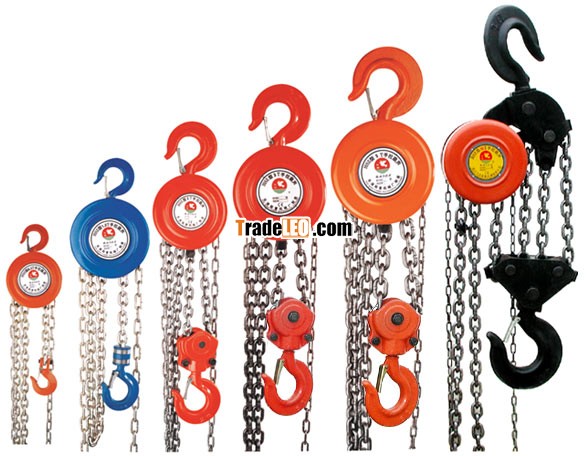

HSZ manual chain block 0.5-30ton chain block
Introduction
ManualChain hoist is a kind of widely used and portable manual operating hoisting machine,especially widely used on no power. It is popular for hanging it in the load-bearing structures, steel beam, tripod, rod or the trailer. .It can be used in machine installation,products lifting and loading(unloading) industry,agriculture,construction and
mineral production.It is suitable to be used in the open air and no electric power works.
Hand chain hoist operation
- pls check the lifting hook if it is firmed and Check whether there is any wrong twist on lifting chain link in order to avoid lifting chain is stuck
- when lifting, operator should stand with same plane with the hand chain wheel, then pull the hand chain with gentle
- power In case the hand chain jumpy and snap ring.
- if has the phenomenon that can not pull, pls do not pull with yank power, at this time, you should check carefully.
- for ratchet and pawl springs, should often check, in order to prevent the brake failure and weight falling
- when lifting, can not use your hand to touch the lfting chain, otherwise it will lest hurt fingers
Specification
| Model | HSZ-1/2 | HSZ-1 | HSZ-1 1/2 | HSZ-2 | HSZ-3 | HSZ-5 | HSZ-10 | HSZ-20 | |
| Capacity t | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Standard lifting height m | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
| Test load t | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | |
| Min distance (hook to hook) mm | 270 | 270 | 368 | 444 | 486 | 616 | 700 | 1000 | |
| Chain pull to lift full load N | 225 | 309 | 343 | 314 | 343 | 383 | 392 | 392 | |
| No. of load chain fall lines | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Diameter of load chain mm | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
| Dimensions mm | A | 120 | 142 | 178 | 142 | 178 | 210 | 358 | 580 |
|
| B | 108 | 122 | 139 | 122 | 139 | 162 | 162 | 189 |
