-Widely used in food industry, chemical industry, sanitation industry, recycle industry, smelt casting industry, etc.
-It can be installed between forklift and clamp attachment to enable to handle with rotating.
1. Function

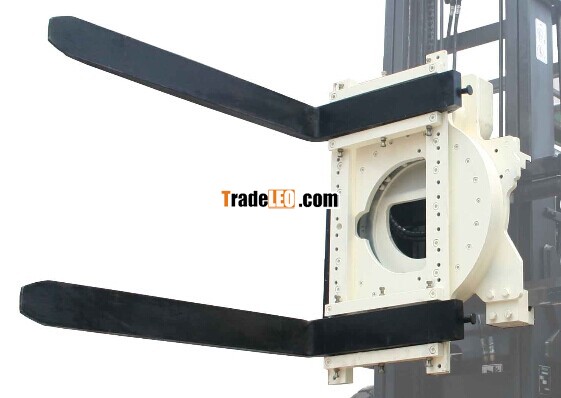

The rotator can be attached to the tines of a forklift to give the machine rotational capabilities. It gives an expanded range of motion, which allows it to be used for a large number of application
<img src="http://img.worldinout.com/img/201611/05/093734581.jpg" alt="360 degree forklift rotator for forklift truck" width="586" height="193" ori-width="800" ori-height2. Mounted on Forklift Truck
Most forklift rotator models are designed to fit directly over the tines of the forklift, where they can to attach with chains or specialty fasteners.
<img src="http://img.worldinout.com/img/201611/05/093734411.jpg" alt="360 degree forklift rotator for forklift truck" width="700" ori-width="800" ori-height="326"&g
| Capacity@ Load Center (kg@mm) | Type | Truck/ Rotator Mounting Class | Rotator/ Fork Mounting Class | Carriage Width B (mm ) | Fork Max. Spacing OTO (mm) | Overall Width C (mm) | Weight (kg) | Effective Thickness ET (mm) | Horizontal Center of Gravity HCG (mm) |
| 1700@500 | 1 | II | II | 815 | 705 | 840 | 188 | 127 | 56 |
| 1600@500 | 2 | II | II | 815 |
705 | 840 | 254 | 165 | 122 |
| 1600@500 | 3 | II | II | 815 | 705 | 840 | 259 | 165 | 150 |
| 1600@500 | 4 | II | II | 815 | 705 | 840 | 268 | 165 | 178 |
| 1600@500 | 5 | II | II | 815 | 705 | 840 | 277 | 165 | 206 |
| 2200@500 | 6 | II | II | 815 | 705 | 840 | 300 | 150 | 79 |
| 2200@500 | 7 | II | II | 940 | 835 | 965 | 309 | 150 | 79 |
| 3000@500 | 8 | II | II | 940 | 855 | 965 | 313 | 150 | 81 |
| 3000@500 | 9 | III | II | 940 | 855 | 965 | 329 | 191 | 114 |
| 3000@500 | 10 | II | II | 1145 | 1060 | 1170 | 327 | 150 | 84 |
| 3000@500 | 11 | III | II | 1145 | 1060 | 1170 | 343 | 191 | 117 |
| 3500@500 | 12 | III | III | 1065 | 990 | 1090 | 390 | 201 | 124 |
| 3500@500 | 13 | III | III | 1220 | 1140 | 1245 | 406 | 201 | 127 |
3. Features
Instead of simply lifting a box or pallet up and down, it can fastly and efficiently turn a box or bin completely over without the use of physical labor. It is often used in this capacity to empty trash, or to fill a bin or hopper as part of the manufacturing process.
