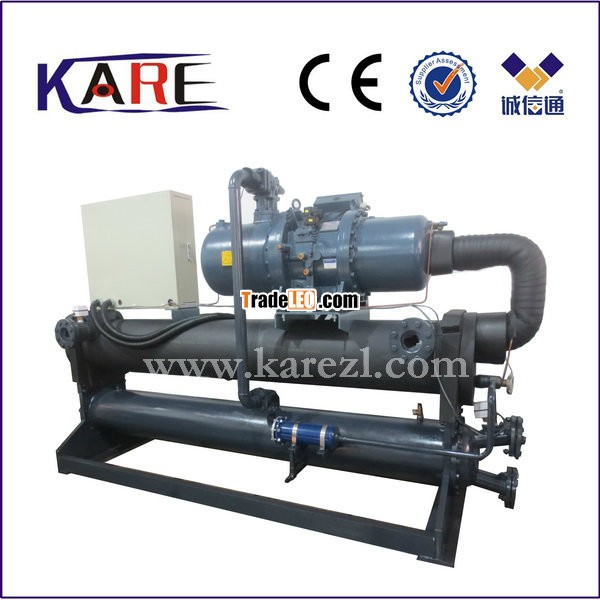

Model:KRS-160W
Send Inquiry
-35~0C degree Medium-temperature chiller price
* Semi-hermetic compressor, Low failure rate, excellent reliable performance.
* Use famous brand like bitzer, hanbell etc. Control precision, stable performance.
* Electrical accessories is LG.Control precision, safety use, long sevice life.
* Adopt new type highefficiency evaporator, water cooled condenser;
* PLC programmable controller,human-machine interface with full English and Chinese version;
* Smooth running, smallvibration, compact structure, easy to carry andinstall.
| Model No. of KARE | KRS-120W | KRS-160W | KRS-220W | KRS-290W | KRS-310W | ||
| Power supply | 3Φ-380V-50Hz | ||||||
| Rated Cooling Capacity | KW | 120.4 | 164.2 | 215.3 | 285.8 | 313.7 | |
| Kcal/h | 103500 | 141200 | 185100 | 245700 | 269700 | ||
| Running current | A | 50.9 | 63.8 | 87.5 | 108.1 | 122.2 | |
| Chilled water flow | m3/h | 20.7 | 28.2 | 37 | 49.1 | 53.9 | |
| Cooling water flow | m3/h | 24.9 | 33.7 | 43.9 | 58.4 | 64 | |
| Compressor | type | - | Screw Semi-closed type | ||||
| Qty. | PCS | 1 | |||||
| Starting mode | - | Y-Δ | |||||
| Capacity control | % | 0,33,66,100 or 0,25,50,100 | |||||
| Power | KW | 30 | 37.6 | 52.3 | 66.1 | 71.3 | |
| Refrigerant oil | Model | - | HBR-A01 | ||||
| Capacity | L | 7 | 7 | 7 | 8 | 12 | |
| Refrigerant | Model | - | R-22 | ||||
| Control mode | - | Thermostatic Expansion Valve | |||||
| Capacity | Kg | 18 | 25 | 32 | 42 | 46 | |
| Evaporator | type | - | Shell & tube type | ||||
| Pipe dia. | mm | DN80 | DN100 | ||||
| Condensor | type | - | Shell & tube type | ||||
| Pipe dia. | mm | DN80 | DN100 | ||||
| Demension | (L) | mm | 2250 | 2300 | 2500 | 2500 | 2600 |
| (W) | mm | 800 | 800 | 800 | 800 | 850 | |
| (H) | mm | 1450 | 1450 | 1550 | 1550 | 1700 | |
| Weight | Kg | 1050 | 1200 | 1360 | 1600 | 1750 | |
