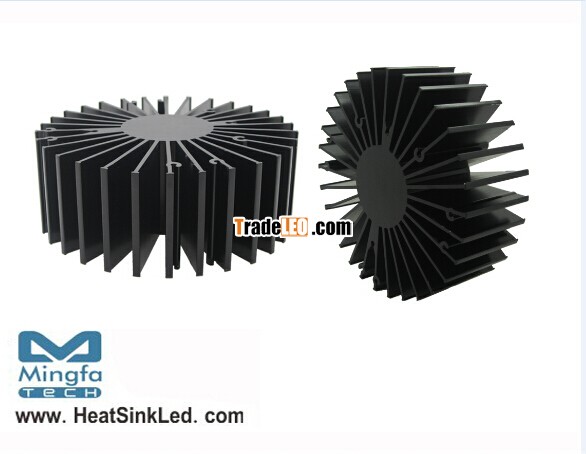

Model:Cool-LED Simpo-BRI-13550 for Bridgelux Modular Passive LED Cooler Φ135mm
Send Inquiry
Cool-LED Simpo-BRI-13550 for BridgeluxModular Passive LED Cooler Φ135mm
| Model No. | Simpo-BRI-13550 | ||||||||
| Size | Φ135xH50mm | ||||||||
| Material | 6063-T5 | ||||||||
| Finish | Black Anodized | ||||||||
| Weight(gr) | 638 | ||||||||
| Thermal Wattage | 60.3W | ||||||||
| HeatsinkΘs-a2 | 155618 | ||||||||
| Heat Sink T Rise Above Ambient | 0.65 | ||||||||
Simpo cooler for Bridgelux LED arrays
Luminaire cooling performance
2,100 – 7,000 lumen
Diameter 135mm - Height 50mm - Thermalresistance Rth 0.65°C/W
Validated thermal design For ES Star Array,Vero10,Vero 13,Vero 18, Vero 29;
For RS array
Direct mounting on the LED cooler or with ZhagaBook 3 LED holder
