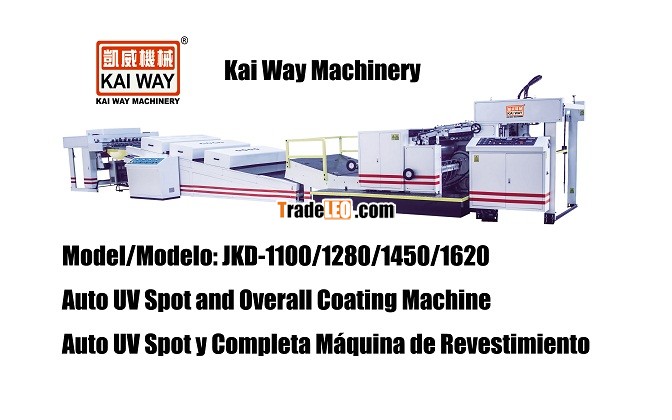

Auto UV Spot and OverallCoating Machine

Brand: Kai Way

Model: JKD-1100/1280/1450/1620

Max. Sheet Size: 800×1100mm/920x1280mm/1080x1450mm/1300x1620mm

Min. Sheet Size:  310x406mm/350x406mm/500x460mm

Max. Coating Area: 790x1090mm/910x1270mm/1070x1440mm/1290x1620mm

Coating RegistrationAccuracy: + 0.2mm

Sheet thickness: 80-600gsm/125-600gsm/150-500gsm

Power Required:  42.8kw/51.5kw

Production Speed: up to 5,200sheets/4200sheets/2800sheets/hour.

                (Depending on sheet weight, size and quality)

Dimension (LXWXH): 7575mmx3021mmx2221mm/10420mmx3400mmx2360mm/

12840mmx3500mmx2500mm

Total Weight: 9300/9500/9700kgs

Standard Equipments:

1.   Auto Feeder

2.   Multifunctional Coating Unit

3.   UV Curing System

4.   Auto Delivery Unit

5.   Auto Control.

Optional Equipments:

Coating Partfor Water base and I.R Dryer

Kai Way JKD series UV spotand overall coating machine adopts gripper transferring sheet structure ofoffset press. Enclosed chain and track design for whole machine.Bigger-diameter impression cylinder is more suitable for both thick and thinsheet, spot and overall coating. The coating layer on the finished product ismore even and flat.
