Model:T8216D
| Diameter range of boring hole | Ф15-Ф150mm |
| Centre distance of link two hole | 85-600 mm |
| Longitudinal travel of worktable | 320mm |
| Spindle speed | 140rpm-1200 rpm（The infinite speed adjustment） |
| Transverse adjusting amount of fixture | 80 mm |
| Feeding speed of worktable | 0-320mm/min |
| Traveling speed of working o | 1800 mm/min |
| Diameter of boring bar (4 class) | (5 class)Φ14、Φ16、Φ24、Φ40、Φ60mm |
| Main motor power | 1.5 Kw（Frequency conversion motor） |
| Motor power of oil pump | 1.5KW |
| Overall dimensions(L×W×H) | 1400x570X1900mm |
| Packing dimensions(L×W×H) | 1800x850x1950 |
| N.W/G.W | 900/1100kg |

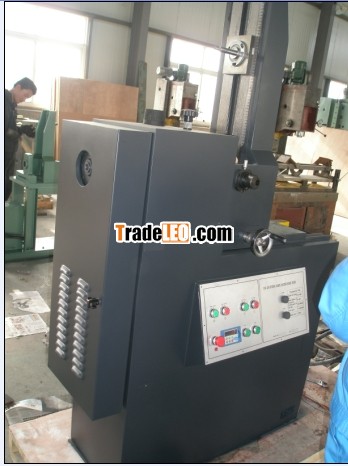

Con-rod bushing boring machine model T8216D
The machine ismainly used for boring hole (rod bushing and copper bush) of engine. Themachine can be also used for fine repairing-boring base hole of rod bushing.
