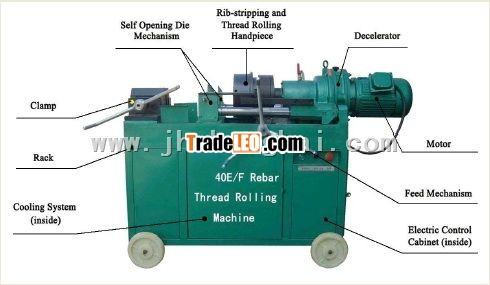

| Rebar Thread Rolling Machine JH-40E/F | ||||
| (Rebar Rib-stripping and Thread Rolling Machine) | ||||
| The rebar thread rolling machine series is mainly used to process the ribbed rebar to provide the rebar head with parallel screw thread in construction. | ||||
| JH-40E/F is safe to use and designed reasonable in construction operating. It can make much longer parallel threads on head of rebar. | ||||
| 1. Peel ribs of rebar end | ||||
| 2. Roll thread automatically | ||||
| 3. Connect the thread rebar ends with rebar coupler | ||||
| Technical Parameters |
|
|
| |
| Electric motor power | 4KW |
|
|
|
| Working voltage | Three-phase380V/50HZ |
|
|
|
| Rotate speed: | 62r/min |
|
|
|
| Max output torque: | 400KN 530KN |
|
|
|
| Rebar Dia | 14mm-40mm |
|
|
|
| Thread length | JH-40E 200mm |
|
|
|
|
| JH-40F 300mm |
|
|
|
| Thread pitch | 2.5mm, 3mm, 3.5mm |
|
|
|
| Rebar standard | HRB335,HRB400, HRB500 |
|
|
|
| Gross weight | 530 KGS |
|
|
|
| Dimension | 1250*750*1050mm |
