Model:MJF-80-1800
Introduction

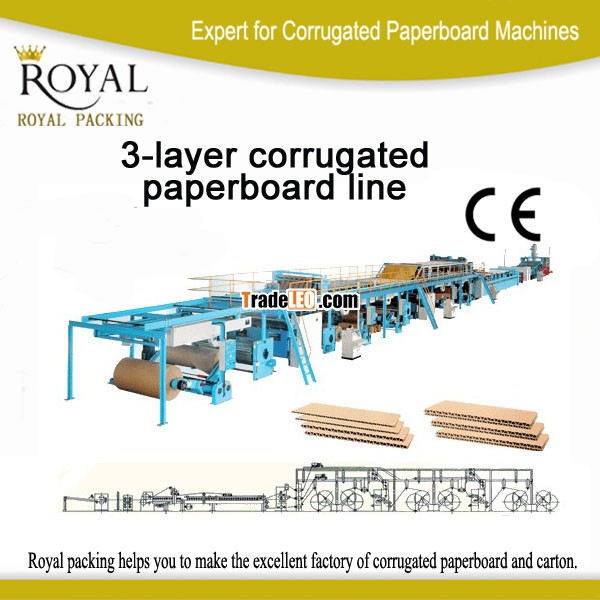

Corrugated cardboard production line includes mill roll stand, single facer, pre-heater, conveyer bridge, gluing machine, slitter scorer machine, cut off machine and stacker. We can produce the three ply, five ply and seven ply corrugated cardboard production line, Widths from 1400 to 2500mmmin,production speeds from 60 to 250 meters/min Customer's can choose according his own needs. We can provide a complete production line and can also provide individual parts to complete customer’s own line.
Equipments List
| Equipments Name | MJF-80-1800 Economic | MJF-120-1800 Middle-speed | MJF-180-1800 High-speed |
| Mechanical Roll Stand (include the paper roll rail.) | 3unit | 5units |
|
| Hydraulic Roll Stand (include the paper roll rail.) |
|
| 5units |
| Pre-heater Φ600mm | 4units |
|
|
| Pre-heaterΦ900mm |
| 4units |
|
| Pre-heaterΦ1000mm |
|
| 4units |
| Vacuum Single Facer (RollΦ280), gimbal drive | 2units |
|
|
| Vacuum Single Facer (RollΦ320), gimbal drive |
| 2units |
|
| Vacuum Single Facer (RollΦ380), gimbal drive |
|
| 2units |
| Transport Bridge (Electrical adjust the precision, vacuum tighten and loosen.) | 1set |
|
|
| Heavy model transport bridge (Electrical adjust the precision, vacuum tighten and loosen.) |
| 1set | 1set |
| Triple preheater Φ600mm | 1units |
|
|
| Triple preheater Φ900mm |
| 1units |
|
| Triple preheater Φ1000mm |
|
| 1units |
| Double Gluer - B | 1units | 1units |
|
| Heavy model double gluer -C |
|
| 1units |
| Double baker (600mm X14heat plates, 6meter cooling part.) | 1units |
|
|
| Double baker (600mm X15heat plates, 7meter cooling part.) |
| 1units |
|
| Double baker (600mm X18heat plates, 9meter cooling part.) |
|
| 1units |
| High-Speed Thin Blade(Electrical up and down, electrical adjust the precision.) | 1units | 1units |
|
| NC Thin Blade (Computer control) |
|
| 1units |
| NC Cutter (Servo, straight knife.) | 1units | 1units |
|
| NC Cutter (Servo, spiral knife.) |
|
| 1units |
| Paperboard Conveyor (right-angle shape) | 1units |
|
|
| Stacker |
| 1units | 1units |
| Glue System |
| 1set | 1set |
| Steam System (Not include boiler and pipes) | 1set | 1set | 1set |
