Model:GYGD

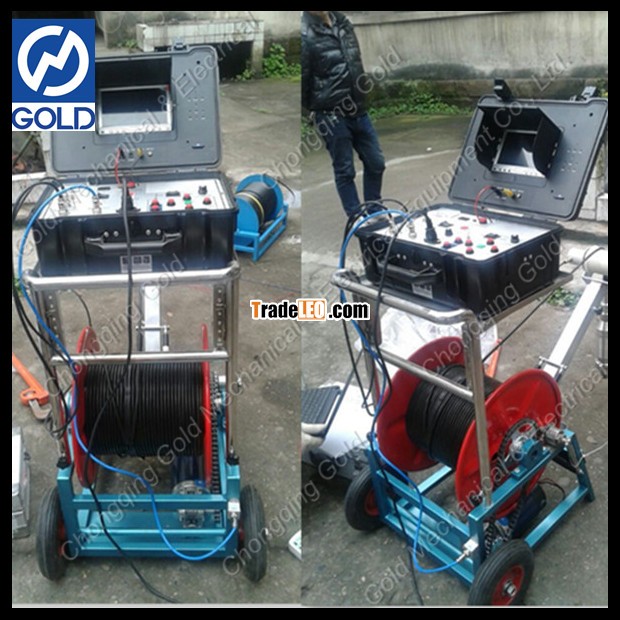

Underwater CCTV Camera,deep well camera
Application:
The underwater inspection camera is mainly used in underwater, borehole, water well drilling hole engineering, hydrology, mining, petroleum, geotechnical, civil and other units or departments.
It can be used to observe the characteristic of geologic body in drill hole, well hole, well drilling, oil well and pile foundation etc, such as rock structure, geological structure, rock strike, faults, fissures, dissection, underwater and undersea survey.
Detailed data:
| No. | Name | Dimension | Specification |
| 1 | Probe | Dia.: 50/80mm | (1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 16-20Mpa (can be under 2000m deep water) (4) Light: LED Lights |
| 2 | Camera |
| (1) Inductor 1/3'' CCD, (2) Image definition is HD 450 TVL (3 Watertight (4) Camera Type: Panoramic/Rotary |
| 3 | Professional Cable | 0-2000m(optional) | (1) Tension is 150kg, (2) Destroy tension is 260kg |
| 4 | Control Machine |
| (1) 12V/220V (2) LCD display (3) Aircraft grade aluminum alloy material |
| 5 | Down-hole Pulley |
| Can change the pulley size according to the well opening size |
| 6 | Cable Winch |
| Manual / Electrical winch |
