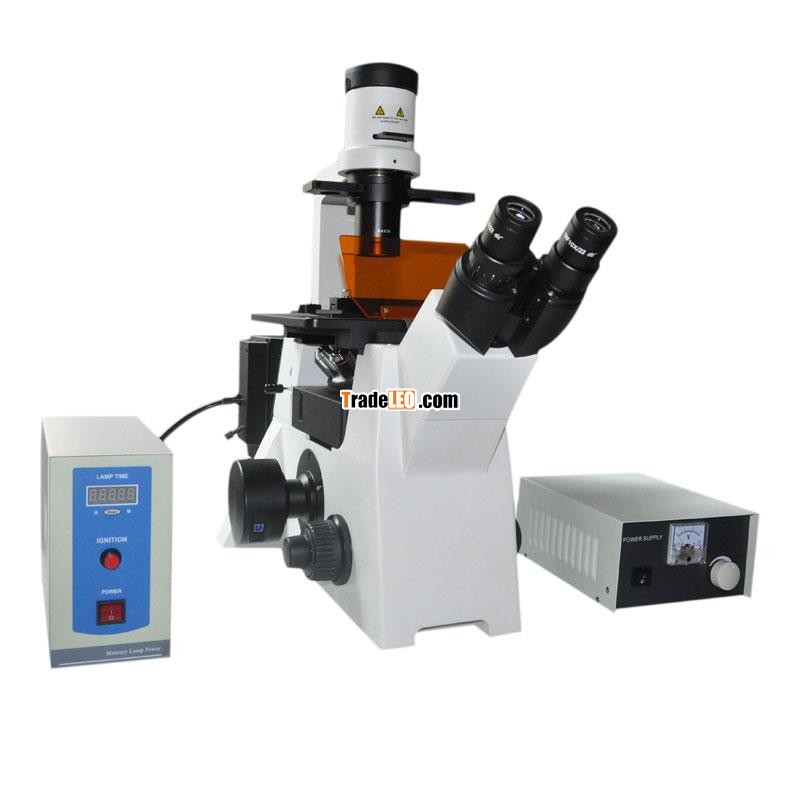

Inverted Fluorescence Microscope MF53
Inverted Fluorescence microscope MF53 is latest microscope developed by Mshot with the performance reaching the international standard. MF53 adopts Infinity Independent Achromatic to make sure better imaging quality. Meanwhile, MF53 also support phase contrast, simple polarizing, digital and photographic observation.
Parameters :
| Item | Specification | Quantity | |
| Eyepiece Head | Binocular observation tube, 45°inclined, interpupillary width adjust range 52-75mm, diopter adjustable | 1 | |
| Eyepiece | WF10X/20 plan eyepiece, high eyepoint | 2 | |
| Centering telescope | 1 | ||
| Objective (infinity long distance objective) | 10X infinity long working distance plan achromatic objective. NA0.25 WD9.67 | 1 | |
| 20X infinity long working distance plan achromatic objective. NA0.40 WD7.97 | 1 | ||
| 40X infinity long working distance plan achromatic objective. NA0.40 WD7.97 | 1 | ||
| 20X infinity long working distance plan phase-contrast positive objectives. NA0.40 WD7.97 | 1 | ||
| Focus system | Coaxial coarse and fine with limit and locking devices, low coaxial focus adjusting handle, fine adjusting handle scale value 0.001mm, focusing more accurate. | 1 | |
| Converter | Quintuple revolving nosepiece with bearing inner location and anti-fungus device | 1 | |
| Stage | Fixed stage 240mmX260mm; with low-positioned X/Y coaxial control knob, moving range 135mmX85mm, with water drop slide （Φ118）and multifunction slide holder（76X26、Φ60) | 1 | |
| Epi fluorescent equipment | Multifunctional fluorescent semi-reflector | 1 | |
| Mercury lamp housing | 1 | ||
| 100W/DC mercury lamp | 1 | ||
| Power box: AC 10V or 220V | 1 | ||
| UV excitation fluorescence unit | UV excitation waveband: 420~485nm | 1 | |
| Blue excitation fluorescence unit | B excitation waveband: 460~550nm | 1 | |
| Green excitation fluorescence unit | G excitation waveband: 460~550nm | 1 | |
| Condenser | Condenser: long working distance condenser 72mm, NA 0.30, equipped with three holes phase contrast ring plate with yellow, green and blue filter groups | 1 | |
| Transmitted light illuminator | Adopts built-in aspheric lens, 6V30W Osram halogen lamp, universal voltage 110-240V，50/60Hz, specialized power box | 1 | |
| Optical interface | 0.5x C-mount adapter | ||
| Spare lamp | 6v 30w halogen lamp | 1 | |
| Optional Digital Cameras for Fluorescence Microscopy Imaging | ||
| Mode | Main Specifications | Features |
| MC20-N | 1.4MP color CCD camera, 2/3” Sony ICX285AQ CCD | High sensitivity, low noise, fast, comparative to cooled camera |
| MC20 | 1.4MP color CCD camera, 2/3"SONY ICX285 CCD | High sensitivity to weak fluorescence |
| MC50 | 5.0MP color CCD camera, 2/3" Sony ICX282 Progressive Scan Interline CCD | High resolution, cooling mode optional |
| MD50-T | 5.0MP color CMOS camera | High resolution, sensitivity, fast frame rate, USB2.0& USB3.0 |
| MD30 | 3.0MP color CMOS camera | High clarity, cost effective, stable |
| MD50 | 5.0MP color CMOS camera | High resolution,cost effective, stable |
