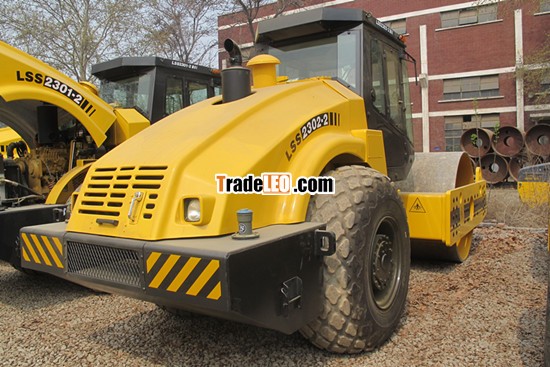

Model:LSS2302-2
23ton Single Drum Vibratory Rollers LSS2302-2 MainFeatures:
? MP3 supported music system with USB and SD interface.Modernized style overall appearance. Driver’s cabin with T type angularglasses.
? GUO Il emission standard engine. Engine coolingair-path structure and large capacity of fuel tank.
? onehandle controlled pneumatic shift control mechanism, parking brake by cuttingair, safety and reliability.
? Dual amplitude setting of vibration. New types ofvibration device and drum travel bearing structure. Heavy duty gearbox. Drivingaxle with greater braking torque.
? Joint-moving mechanism of the clutch pedal with enginethrottle. Adjustable instrument desk with liquid crystal instrument panel.
23ton Single Drum Vibratory Rollers LSS2302-2 MainPerformance Parameters:
| Model |
| LS2302-2 |
| Operating mass | kg | 23000 |
| Static linear load | N/cm | 529 |
| Vibration amplitude | mm | 2.0/1.0 |
| Vibration frequency | Hz | 28/35 |
| Centrifugal force | kN | 380/300 |
| Max. travel speed | km/h | 10.5 |
| Grade ability | % | 35 |
| Min. turning radius | mm | 7500 |
| Drum width | mm | 2130 |
| Drum diameter | mm | 1600 |
| Wheelbase | mm | 3530 |
| Min. ground clearance | mm | 445 |
| Engine model |
| SC8D180 |
| Engine power | kw | 132 |
| Overall dimensions | mm | 6800×2300×3000 |
