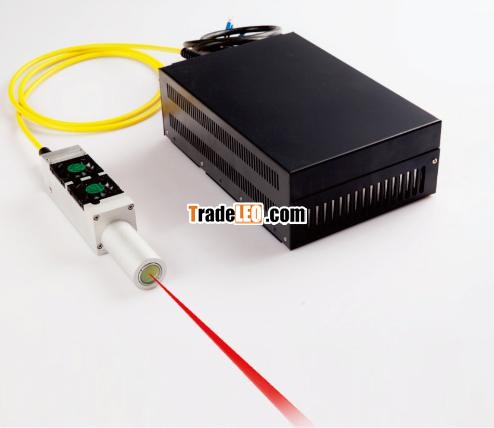

Model:MMEPF-1064
Send Inquiry
| F-Series Lasers | |||
| Model | MMEPF-1064-3 | MMEPF-1064-6 | MMEPF-1064-10 |
| Wavelength | 1064nm±1nm | 1064nm±1nm | 1064nm±1nm |
| Average output power | >3W±0.2W | 6W±0.5W | 10W±0.5W |
| Degree of power instability | <3%(6 hours) | <3%(6 hours) | <3%(6 hours) |
| Pulse width | 8ns | 8ns | 8ns |
| Peak power | >30kW | >40kW | >50kW |
| Repetition frequency | Uncontrollable 10~15kHz suitable for the application of needing high peak power | Uncontrollable 15kHz~20kHz suitable for the application of needing high peak power | Uncontrollable 20kHz~30kHz suitable for the application of needing high peak power |
| Mode | Near TEM00 | Near TEM00 | Near TEM00 |
| Spot diameter | 6mm | 7mm | 7mm |
| Operating temperature | 10-35oC | 10-35oC | 10-35oC |
| Cooling mode | Air-cooling | Air-cooling | Air-cooling |
| Power Supply mode | DC12V(>200W) | DC12V(>200W) | DC12V(>200W) |
