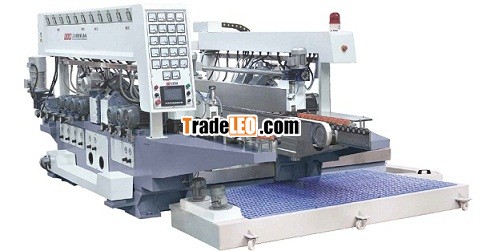

Glass straight-line double edging machine LCH22 Series
With the function of removing film ,suitable for grinding LOW-E glass
Product Description
Glass straight line double edger can remove the LOW-E film while grinding
Model&Specifications
| Model | min width | max width | Dimension(mm) | Weight | Working thickness | Transmission speed | Diagonal Tolerance | Power |
|
LCH2522
| 200mm | 2500mm | 4545×4650×1900 | 6600kg | 3-25mm | 0.5-6.5m/min | ≤0.5mm/m | 50kw |
| LCH3022 | 200mm | 3000mm | 5042×4650×1900 | 7000kg | 3-25mm | 0.5-6.5m/min | ≤0.5mm/m | 50kw |
| LCH4022 | 280mm | 4200mm | 6265×4650×1900 | 7800kg | 3-25mm | 0.5-6.5m/min | ≤0.5mm/m | 50kw |
