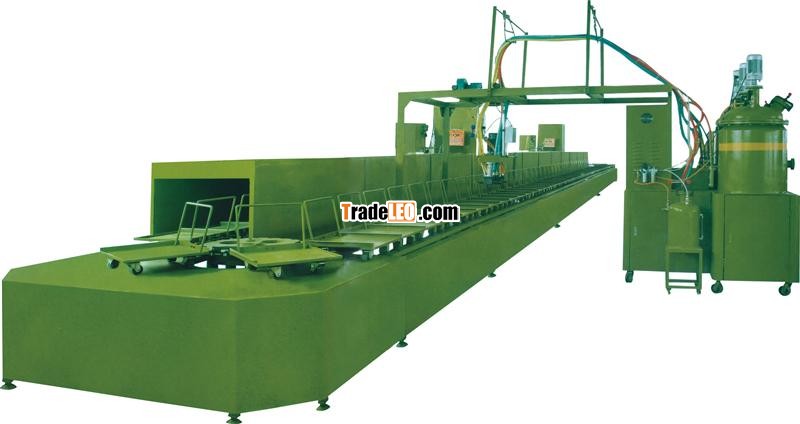

Model:lz-xc905
| Product’s Technical Parameters | ||
| Category | Main technical parameters | Describe |
| Triple-componente Foaming Machine | Equipment Model | LZ-XC905 triple-components foaming machine |
| Power supply | All power of the machine 12KW、4*380V/60HZ | |
| The type of applicable foam | Sole，insole， walking shoe, etc. | |
| Flux of inject | 30g-100g/S (Attention：the flux could be configured) | |
| The press of infect | 0.1MPA-3.99MPA | |
| The mix proportion | 100-65；100-110 | |
| Viscosity(22°) | POLY( polyethylene )500-2000MPAS | |
| Viscosity(22°) | ISO( Multi-isocyanate )500-2000MPAS | |
| Time of injecting | 0.01-9.99/S( precision 0.01S) | |
| Precision of injection | 0.1/100 | |
| Process of injecting | Manual inject by PLC programmed | |
| Pneumatic pressure | 0.6-0.8MPa | |
| Area | Wide:2.1M; High:2.35M; Long:3.5M | |
| Weight of the machine | 1．5ton | |
| Pouring nozzle | With collision impact needle, Never wear, Never plug
| |
| PLC Programmed computer（English demonstration）
| It could control 100 patterns’ capacity of injecting at the same time and could wash the Gas-injecting automatically | |
| heat system
| It can automatic control temperature | |
| Annular Workbench+ Mould Heating System
| Pneumatic mold station | 36 |
| Material for work station | 3mm, iron plate | |
| Water heating box | 150L,304 stainless steel | |
| Water recycling tube | With connectors | |
| Water recycling tube | 18kw | |
| Oven | Capacity | 18kg=60 barrels Or250kg=4 barrels |
| Gross power | 6 kw | |
