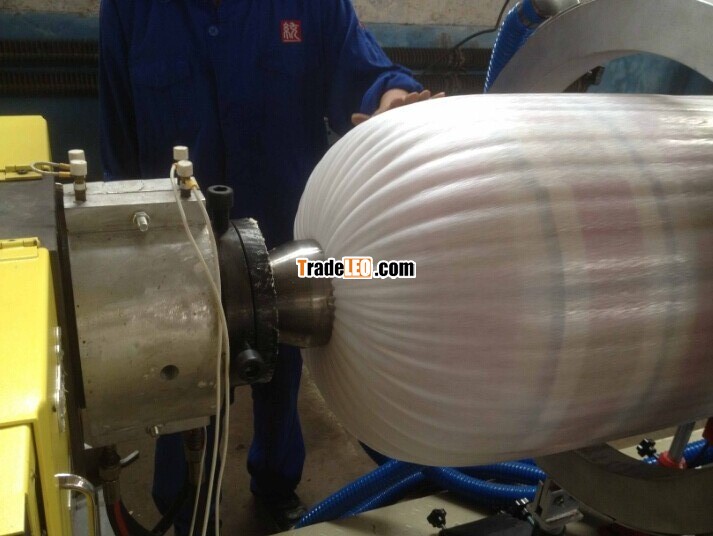

EPE foam sheet production line is a single stage extruding and foaming equipment with large L/D. It takes polyethylene resin with low density as raw material. This production line is the most ideal physical PE forming unit in the world. It has continuos stable performance with high yield, wide range of foaming ratio, high automation and reliability.

Resin applied: LDPE

Capacity of extruding:approx 260—400kg/hr

Thickness of sheet approx : 1-12mm

Width approx :1000-2000mm,depending on the thickness of sheet

Speed of the manufacture line:10—80m/min

Power supply: 3 phase/ 380V/ 50Hz

Main motor:110KW

Cooling water :150L/H

Compressed air: 0.2~0.4 m3/min,0.6Mpa

Total weight (approx):15T

Mounting size: 30m×2.3m×2.2m
