Model:XKH800C
Application:

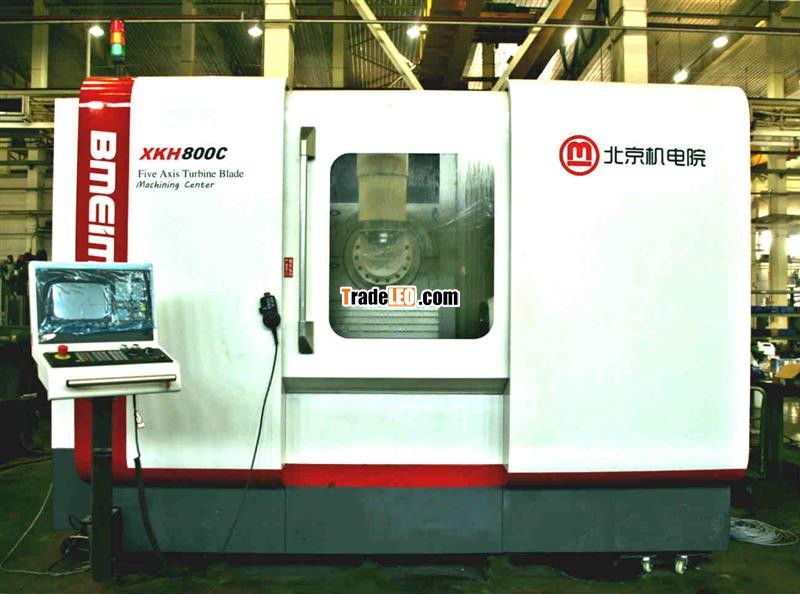

XKH800C of5-axis machine can be widely used in electric power, aviation and otherindustries, and suitable for machining turbine blade of different specificationand use.
Features:
- The machine has three linear axes (X, Y, Z) and two rotary axes (A,B). Tool spindle box and B axis swing box mounted in front of column movesalong Z axis direction and column along X axis direction.
- The headstock and tailstock of A axis are mounted on worktable thatmoves along
Y axis direction.
Specification:
| Item | Unit | XKH800C | |
| Travel | A axis Max. turning radius | mm | 200 |
| X、Y、Z axis | mm | 1350/400/500 | |
| A axis |
| n×360° | |
| B axis |
| ±45° | |
| U axis | mm | 750 | |
| Feeding | Straight axis rapid moving speed ( X/Y/Z) | m/min | 20/20/18 |
| Rotation axis rapid moving speed (A/B) | rpm | 80/20 | |
| Straight axis feeding speed (X/Y/Z) | mm/min | 1-12000 | |
| Rotation axis feeding speed (A/B) | rpm | 50/20 | |
| Spindle | Speed | rpm | ≥12000 |
| Taper |
| HSK-A63 | |
| Power | kw | 26 | |
| Tool Magazine | Type |
| ATC |
| Capacity | pcs | 12 | |
| Max. tool dia. | mm | φ80 | |
| Power Source | Compressed air pressure | mpa | 0.55-0.6 |
| Electric power |
| 380V±10%V 50HZ±1HZ | |
| Automatic load & Unload device | One-handed grab weight | kg | 25 |
| Grab the total weight | kg | (25×2) 50 | |
| Manipulator grab weight | kg | 80 | |
| X axis/Z axis moving speed | m/min | 80/60 | |
| Max. work piece length | mm | 400 | |
| Max. work piece weight | kg | 15 | |
| Time | sec. | 50 | |
| CNC System | Siemens | ||
