Product Category : Steam Boiler
Type: DZL
Capacity: 2~10t/h
Pressure: 1.25~3.82Mpa
Temperature: 194~450℃
Fuel: Biomass wood pellets, Rice husk, Bagasse, etc.
Overview:

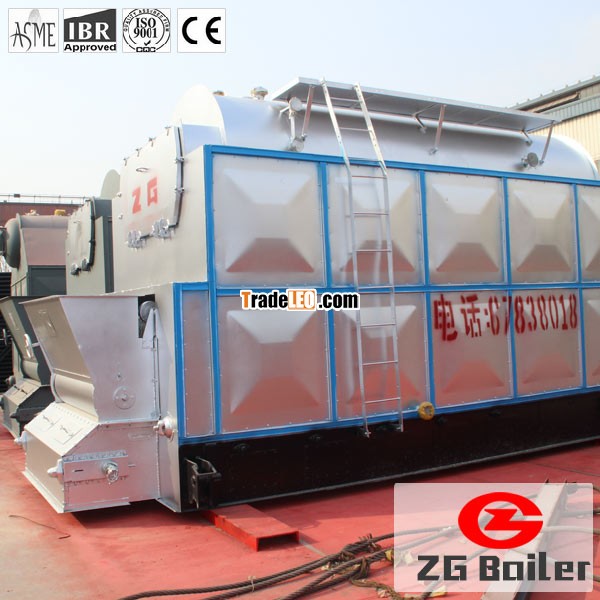

DZL packaged biomass fired steam boiler is a single drum chain grate boiler, the shaped biomass fuel, biomass mixed with coal are available fuels. The packaged biomass steam boiler is suitable for applications to produce 2 ton -10 ton steam per hour.
Applications:
DZL packaged biomass steam boiler is mainly used in Chemical plant, Food factory, Beverage factory, Textile mills, Paper mill, Sugar Plant, etc.
Benefits:
Large combustion chamber, high combustion efficiency
External thermal insulation material,low heat loss
High automation, easy operation
Dust removal equipment, clean and environmental protection
Stable operation, low cost
Strong output, great overload capacity
Strong adaptability for fuels
http://www.zgboilers.com/Products/dzl-packaged-biomass-steam-boiler.html
http://www.zgboilers.com/Products/industrial-biomass-boiler_1.html
Parameter:
| Model | Capacity(t/h) | Pressure(MPa) | Steam Temperature(℃) | Fuel | Factory mode |
| DZL4-1.25-T | 4 | 1.25 | 194 | Biomass pellet | Packaged |
| DZL4-1.6-T | 4 | 1.6 | 204 | Packaged | |
| DZL6-1.25-T | 6 | 1.25 | 194 | Packaged | |
| DZL6-1.6-T | 6 | 1.6 | 204 | Packaged |
