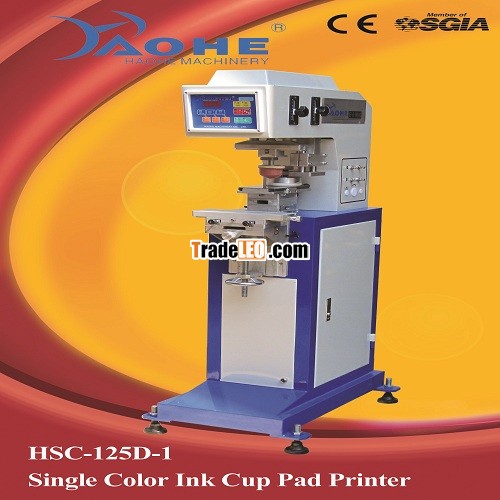

Model:HSC-125D-1
Standard Features:
- Suitable for one color small size fastprinting, widely apply in many industries including stationery, toys,plastic, gift, electrical appliances, electronic, etc.
- Microprocessor control system, electro-pneumatic control;
- 125mm standard stroke, ink cup design,no smell and low evaporation;;
- Independent adjustment of up and down,front and back stroke;
- Independent X, Y printing padadjustment;
- Ink cup base with X, Y, R adjustment,worktable X,Y adjustment;
- Heavy-duty construction with cabinetensures years of reliable operation;
- Stable, durable working and fineworkmanship;
- Foot pedal operation for single cycle;
- Using Germany FESTO pneumaticcomponents;
- Available in open inkwell and ink cupsystem;
- Installed safety guard and emergencystop button (optional);
- Complying with CE safety standards.
Machine Specifications:
| Model NO. | HSC-125D-1 |
| Plate size | 200 x 100mm (8”x4”) |
| Plate thickness | 0.5 mm |
| Ink cup size (diameter) | ID82 x OD90 mm (3.23”x3.54”) |
| Max. printing size | 75 x 75 mm (2.95”x2.95”) |
| Printing capacity | 2600 cycles/hour |
| Drive | Pneumatic |
| Printing force | 629 N |
| Control system | 12V PCB |
| Front & back working stroke | 125 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L680 x W460 x H1310 mm (26.8"x18.1"x51.6") |
| Crated size | L850 x W610 x H1500 mm (33.5"x24"x59") |
| Net Weight | 70 kg (154 lbs) |
| Gross Weight | 110 kg (242 lbs) |
