Model: OTS

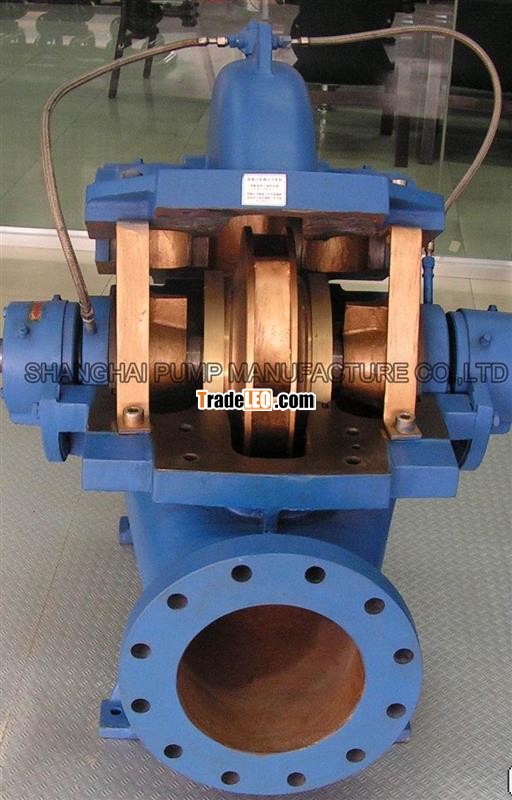

Structure: horizontal double suction single stage split casing centrifugal pumps

Performance:

Capacity:75 ~22000 m3/h

Head: 10~220m

Speed: 490rpm~3600rpm

Operation pressure: Max.2.5MPA

Discharge nozzle dia.: 80~1200mm

Material:

cast iron

cast steel

stainless steel

duplex stainless steel

Seal: mechanical seal or soft packing

Flange standard: ISO,GB, ANSI

Medium: fresh water, industries, river water, sea water, bine, paper stock, hydro-carbon, etc

Temperature: 104 centi-degree at most

Application:

1. Water works: water intake, water supply, booster

2.Industrial use:circulation, drainage, chemical, re-finery, firefighting, sea water desalination

3.Agricultural use: irrigation and Drainage
