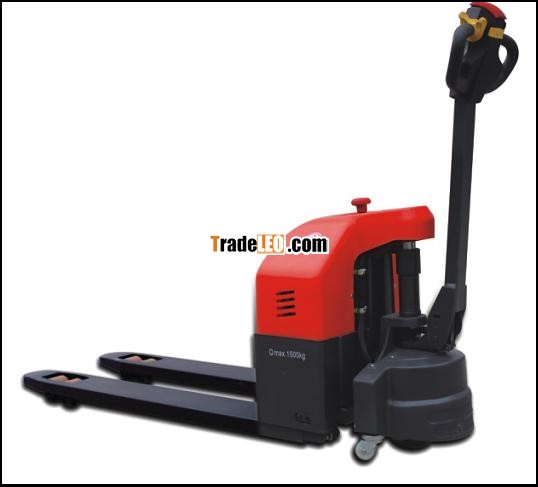

Model:EFB15W
Use Curtis controller imported form USA, reliable quality, excellent performance, with regenerative braking, reverse braking.
World's top-ranking hydraulic station, low noise, small vibration, good sealing, automatic adjustment to no-load full load dropping speed, to ensure stable and reliable when hoisting and descending.
Adopt pull rod lifting, the pull rod is not easy to deformity, the connecting shaft of the pull rod and the front wheel is not easy to wear, lifting is more stable.
The additional auxiliary universal wheel on both sides guarantees stability of vehicle operation.
The built-in charger, with a high degree of autonomy.
Durable, highly efficient and stable components, ensure the vehicle durability.
When lifting automatic limiting, safety, energy saving.
| Item NO. | EFB15W | Fork Width | 160 mm | |
| Type of Driving | Pedestrian Type | Standard Fork Distance | 540/680 mm | |
| Capacity | 1500 KG | Overall length | 1675 mm | |
| Load Center | 500 mm | Overall width | 562/702 mm | |
| Wheel | Polyurethane Solid Tires | Turning Radius | 1480 mm | |
| Max lifting height | 200 mm | Min Aisle width 1000*1000 mm Pallet | 2180 mm | |
| Max lifting route | 120 mm | Max Walking speed | Full | 4.6 km/h |
| Min fork clearance height | 85 mm | Empty | 5.9 km/h | |
| Fork Length | 1150 mm | Max lifting speed | Full | 0.056 m/s |
| Fork Thickness | 50 mm | Empty | 0.06 m/s | |
| Total weight | 192 kg | Max Descent Speed | Full | 0.057 m/s |
| Empty | 0.059 m/s | |||
| Wheel qty. | 1D+4L/1D+2L | Grade Ability | Full | 5% |
| Empty | 7% | |||
| Driving motor | 0.75 KW | Wheel axis distance | 1307/1309 mm | |
| Lifting motor | 0.8KW | Voltage/Capacity | 2*12/70 V/Ah | |
| Braking | electromagnetic | Driving brake | Regenerative Brake | |
| | Thecontroller/model/Specification | CURTIS | ||
