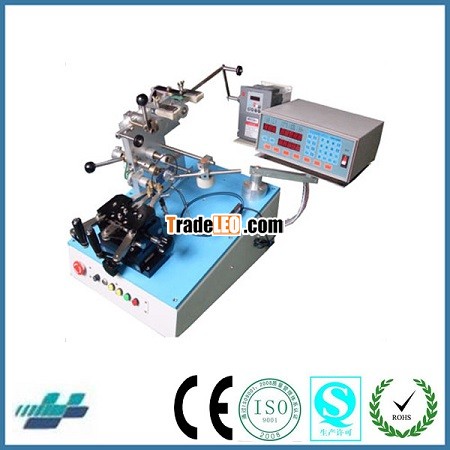

Slider type toroidalwinding machine. It's an accurately and reliability digital toroid-windingmachine. is used for toroidal inductor, toroidal transformer, toroidal currenttransformer, toroidal current sensor, toroidal coil, toroid chock coil, powerinductors, power magnetics,UPS inductor, converter inductors, watter mettersensors, toroid current

SPEED: 1500rpm

WINDING MOTOR: 370W AC motor,variable frequency drive

SPREAD MOTOR: Stepping Motor

MEMORY CAPACITY: 999 STEPS

POWER SOURCE: AC220V  +10%, 50/60 Hz

COIL O.D.:  8-60mm

MIN.FIN. I.D.: 5mm

MAX. HEIGHT:  25mm

WIRE SIZE:   0.05-0.25mm

SHUTTLE DIAMETER:  98mm

SHUTTLE WIDTH:     4.7, 6.3, 7.9, 9.5
