Model:EW400DST
Send Inquiry

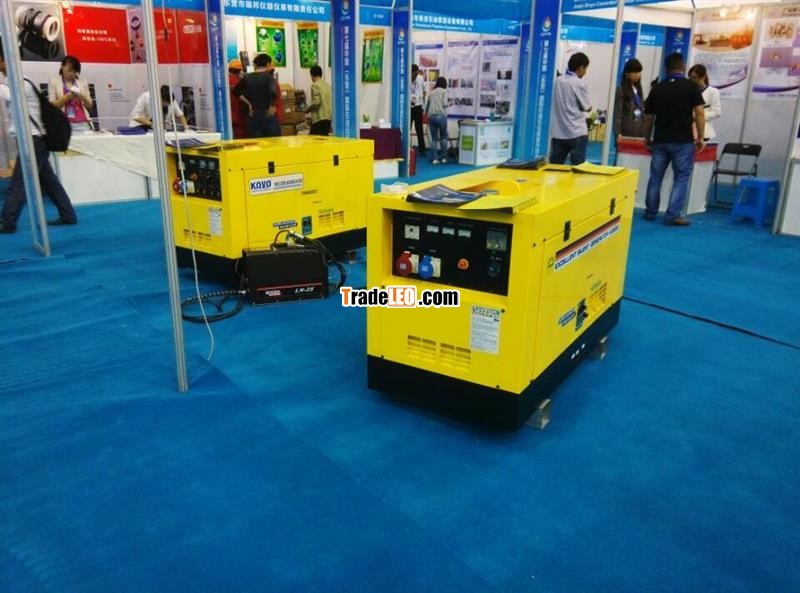

WELDER/GENERATOR IN ONE
TWO HOLDER FOR TWO WORKERPOWERFUL AUXILIARY POWER
| Generator | ||
| DC Welder | ||
| Rated Output | KW | 12.38 |
| Rated Current | A | 380 |
| Rated Voltage | V | 34.4 |
| Current Range(Single) | A | 60-400 |
| Current Range(Dual) | A | 30-200 |
| Open-circuit Voltage | V | 80 |
| Duty Cycle | % | 50 |
| Rated speed | rpm | 3,000 |
| Type | - | Rectified DC output type |
| Applicable Electrode | mm | 2.0-6.0 |
| Aux. power | ||
| Rated Output | KVA | 15 |
| Rated Voltage | V | 220/400/415 |
| Rated Current | A | 21.7 |
| Phase | - | 3-phase/4 wires |
| Power Factor | % | 80 |
| Frequency | Hz | 50/60 |
| Rated Speed | rpm/min | 3,000/3,600 |
| Rate | - | Continuous |
| Excitation | - | Brushless |
| Driven | - | Direct Coupling |
| Engine | ||
| Model | - | Kubota V1305 |
| Type | - | 4-cycle, water-cooled diesel engine |
| Cylinder arrangement | - | 3-L |
| Total displacement | cc | 1335 |
| Rated Output | KW | 22.1 |
| Speed | rpm | 3,000/3,600 |
| Cooling System | - | Water-cooled by radiator type |
| Driven | - | Direct Coupling |
| Fuel | Light diesel oil | |
| Start System | - | Electric motor (12V) |
| Fuel Tank Capacity | L | 37 |
| Battery Capacity | - | 55B24L(12V-36AH/5HR) |
| Dimension (L×W×H) | mm | 1535×712×863 |
| Net Dry Mass | Kg | 510 |
| Operating Mass | Kg | 550 |
