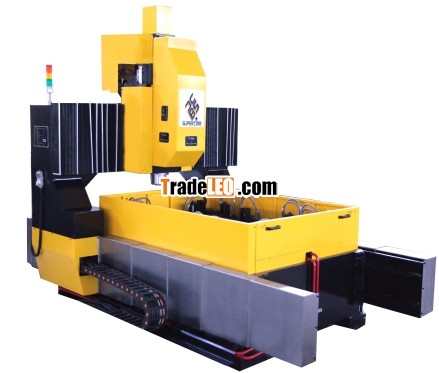

High Speed Gantry Type Drilling Machine for Plates

Function:
Used for drilling plates, flange and other workpiece, mainly used in bridge, construction.  can ream, chamfer and drill blind holes.

This CNC machine is composed of mainframe, working table, chip cleaner, hydraulic system & electrical control system etc.

Specifications:

1) High speed drilling machine, can do drilling and light milling, high processing efficiency.

2) Automatic speed regulation, can control drilling speed automatically.

3) Spindle is BT40 from Taiwan, drilling speed is 30-3000 r/min.

4) CNC system is Siemens 808D, can read lofting software, and transfer CAD/CAM, very easy operation.

5) All the components are world famous brand, reliable for long time use.

Parameter CJ1010HZ：

Max workpiece size: 1000x1000mm
Max thickness: 120mm
Width T-slot:22mm
Overall size: 3,4×3,3×3m
Net weight: 9t

Parameter CJ1610HZ:
Max workpiece size:1600x1000mm
Max thickness: 120mm
Width T-slot: 22mm
Overall size:3.9X3.8X3mm
Net weight: 10t

Parameter CJ1616HZ：
Max workpiece size:1600x1600mm
Max thickness:120mm
Width T-slot:22mm
Overall size:3.9X4.5X3mm
Net weight: 12t
