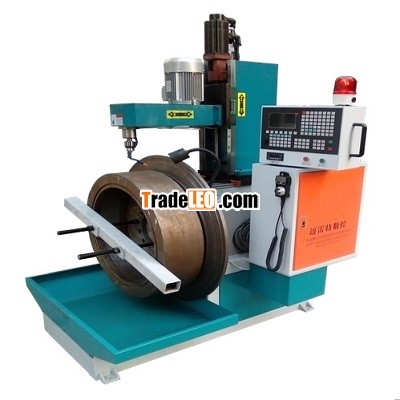

This automatic ring die drilling machine is specifically designed for pellet mill industry. The system along with the machine is totally self-developed by our company. The MLT brand system have now been widely used in the domestic ring die drilling machine owning to its considerate function and high positioning accuracy.

Machine Features:

1, Hole number can be arbitrarily set as per your requirement. Equal hole spacing. Positioning accuracy up to 0.001mm

2, Fully automatic processing, free processing speed adjustment, unique cutting craft, greatly reduce the tool wearing speed and extend the lift time

3, One man can operate several machines, double working efficiency

4, Drilling bit torque upper and lower limit setting, avoid bit breakage.　

5, Release hole depth of different row can be set at once, automatic detection in processing.

6, Directly start drilling after tool replacement, no need to align hole.

7, Easy operation, user can learn how to operate in 5 minute, hole diameter input complete in one minute.

Specification:

MLT-WZ850

Horizontal stroke: 400mm

Z axis stroke: 300mm

Drilling diameter: 0.8-10mm

Ring die diameter: 250-680mm(inner), 850mm(outer)

Positioning accuracy: 0.02mm

Spindle speed: 0-5000RPM

Spindle power: 1.5kw

System language: Chinese/English

size: 162 x 120 x 210cm

Weight: about 700kgs
