Model:GQ40/50
Send Inquiry

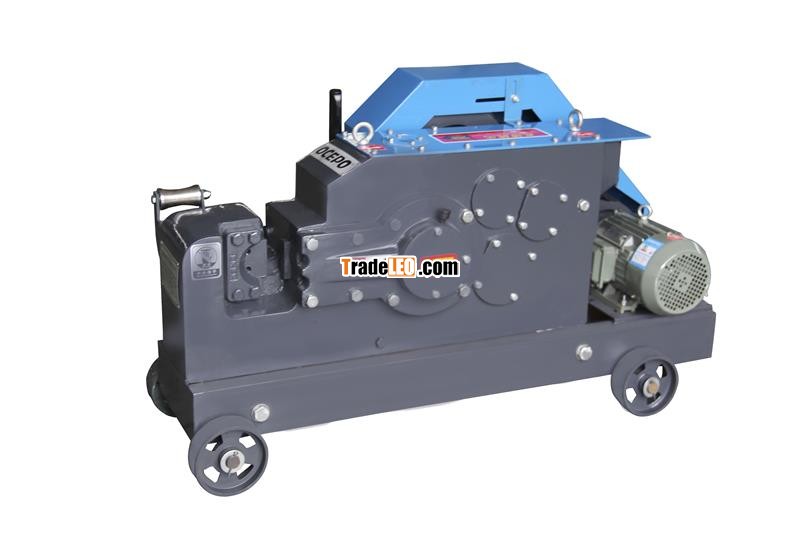

GQ40/50 Rebar Cutting Machine
Specification
| Model | GQ40 | GQ50 |
| Cutting Specification of Flat Steel | 60*15mm | 60*15mm |
| Cutting Specification of Angle Steel | 50*50mm | 50*50mm |
| Cutting Specification of Plain Bar | 6-40mm (σb≤450Mpa) | 6-50mm (σb≤450Mpa) |
| Cutting Specification of Ribbed Bar | 6-32mm (HRB335) | 6-40mm (HRB335) |
| Cutting Specification of Ribbed Bar | 6-28mm (HRB400) | 6-36mm (HRB400) |
| Cutting Frequency | 32times/min | 32times/min |
| Electromotor power | 3.0KW | 4.0KW |
| Rated Voltage | 380V | 380V |
| Engine Rotational Speed | 2880r/min | 2890r/min |
| External Dimension | 1260*530*730mm | 1485*615*740mm |
| Net Weight | 446kg | 570kg |
Application
The machine is used to cut plain bar, ribbed bar, flat steel and angle steel etc.
Advantage
1. Easy to operate, with reliable quality and low power loss.
2. Good lubrication by using gear splash to lubricate in gear box.
3. Wide cutting range, can cut different models of steel bar without removing the blades.
4. 5. It’s convenient to be moved and done maintenance.
