Model:HZM8325C
Send Inquiry

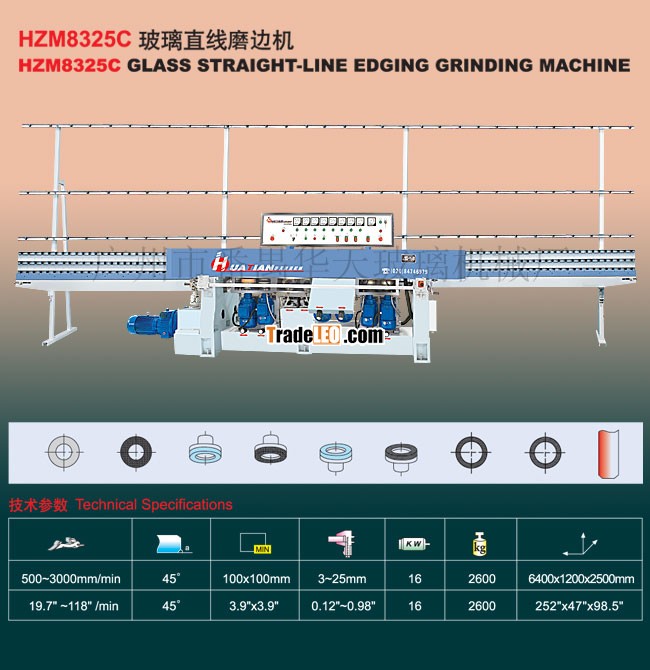

HZM8325C Glass Straight-Line Edging Machine
Feature:
This machine is suitable for grinding flat glass straight-line edges and corners of different size and thickness. Its speed can be adjusted by stepless regulator at random. Rough grinding, fine grinding and polishing can be completed in one procession. It's one of the indispensable equipments for glass procession because of its easy operation, high efficiency and good quality of grinding.
Technical Specifications:
1. The number of grinders: 8
2. Grinding speed: 500 ~ 3000mm/min
3. Angle of arris: 45°
4. Glass thickness: 3 ~ 25mm
5. Size of processed glass : Max: 3000 x 3000mm Min: 100 x 100mm
6. Power : 16KW
7. Weight : 2600 KG
8. Size : 6400 x 1200 x 2500mm
