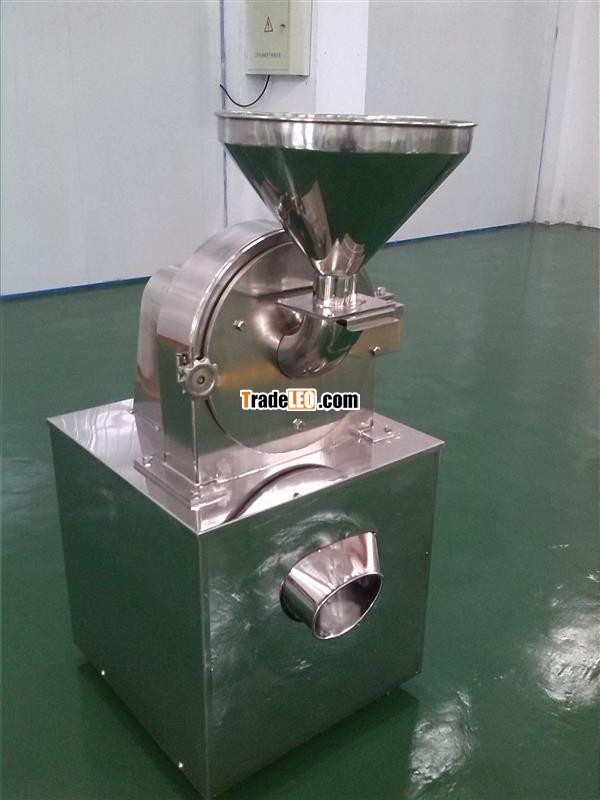

Model:CF-20
Send Inquiry
Specifications
1.simple structure and operation
2. new GMP standard
3.universal pulverizer
Application
Universal pulverizer has a extensive application and is widely used for pharmaceutical industry,chemical industry,foodstuff industry,grain industry and so on.
Working principle
Universal pulverizer uses the relative motion between movable and fixed teeth disc,and the raw materials is grinded by the comprehensive actions such as
impacted by teeth, friction, impact between raw materials.
Our factory picture
Main technical parameter
| Model | Capacity | Spindle | Size of input | Fineness | Motor | Dimensions |
| (kg/h) | Speed | granules | (mesh) | Power | (mm) | |
| ( r/min) | (mm) | (kw) | ||||
| CF-20 | 20-150 | 4500 | <6 | 20-120 | 4 | 550×600×1250 |
| CF-30 | 100-300 | 3800 | <10 | 20-120 | 5.5 | 600×700×1450 |
| CF-40 | 160-800 | 3400 | <12 | 20-120 | 7.5 | 800×900×1550 |
