Model:no modle
Main Feature and Scope of Utilization
1. Positive Pressure burning in gasifier:top and bottom fire layer,the coal gas will be output in the middle of gasifier.
2. The volatile matter such as tar oil which is produced from the burning coal will be pyrolyzed by the high temperature of top fire layer, so that the coal gas does not content any pollutant.
3. Low cost of operation. The bituminous coal could replace the anthracite.
4. Saving the investment, it is available to convert the existing water coal gas gasifier.

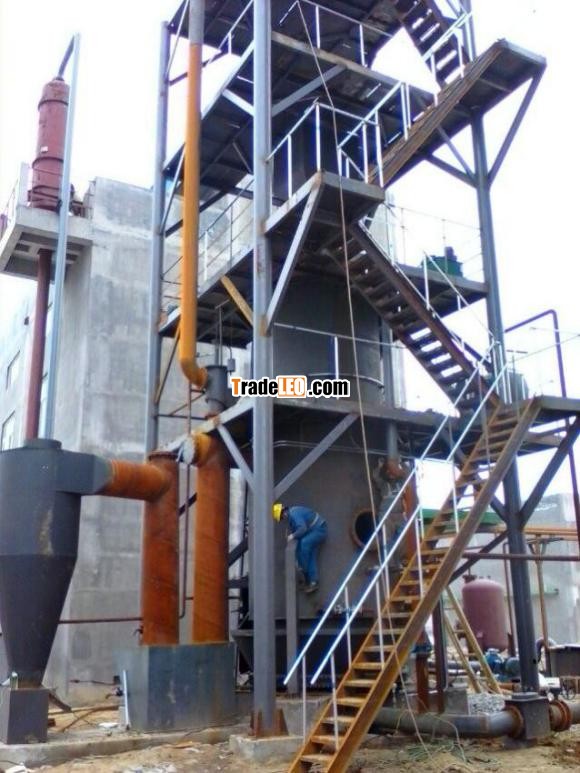

Main Technical Parameters of Bitumite Tar Free Coal Gasifier
| Name | Specification | 0.6 m | Φ0.8m | Φ1.2m | Φ1.6m | Φ2.26m | Φ3m |
| Gasifier Dia | MM | 600 | 800 | 120 | 1600 | 2260 | 3000 |
| Output of Gasifier | Nm3/h | 120- | 200- | 700- | 1300- | 2800- | 5000- |
| Coal Consumption | kg/h | 30- | 60- | 200- | 350- | 850- | 1500- |
| Calorific Value | J/Nm3 | 5.44x106-7x106(1300-1670Kcal/Nm3) | |||||
| Operation Pressure of Water Jacket | Mpa | ≤0.07 | |||||
